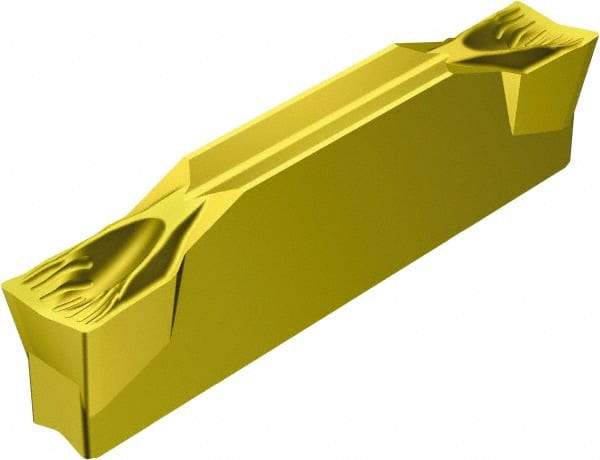

Sandvik Coromant - R123x2F CF 2135 Grade, 0.0984" Cutting Width, Carbide Cutoff Insert - 5° Right Hand Lead Angle, 0.0059" Cnr Rad, TiCN/Al2O3/TiN Coated
Item #: 52085024
Brand: Sandvik Coromant
Model #: 5741489
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat resistant and used for high speed applications. It is commonly used on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Material | Carbide |
| Insert Style | R123x2 |
| Insert Size | F |
| Lead Angle Direction | Right Hand |
| Lead Angle | 5 |
| Cutting Width (mm) | 2.50 |
| Cutting Width (Decimal Inch) | 0.0984 |
| Manufacturer's Grade | 2135 |
| Coating | TiCN/Al2O3/TiN |
| Series | CoroCut 1-2 |
| Relief Angle | 7 |
| Chipbreaker | CF |
| Maximum Depth of Cut (mm) | 18.40 |
| Maximum Depth of Cut (Decimal Inch) | 0.7244 |
| Full Radius | No |
| Multi-Use Application | Yes |
| Coating Process | MTCVD |
| Overall Length (mm) | 19.85 |
| Overall Length (Decimal Inch) | 0.7815 |
| Corner Radius (Decimal Inch) | 0.0059 |
| Corner Radius (mm) | 0.15 |
| Insert Hand | Right Hand |
| Insert Holding Method | Clamp |
| Insert Seat Size | F |
| Overall Width (mm) | 2.50 |
| Overall Width (Decimal Inch) | 0.0984 |
| Manufacturers Catalog Number | R123F2-0250-0501-CF 2135 |
