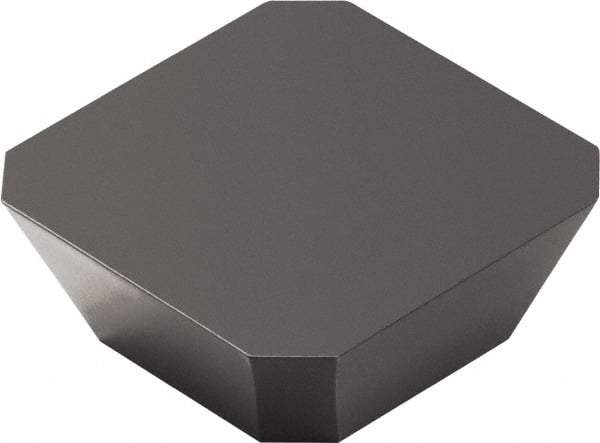

Sandvik Coromant - SEK42 Grade 530 Cermet Milling Insert - Uncoated, 1/8" Thick, 1/2" Inscribed Circle, 1.2mm Corner Radius
Item #: 52084258
Brand: Sandvik Coromant
Model #: 5749498
Exact Tooling IR#: 04
Features and Benefits
Cermet is comprised of ceramic and metal and can be used at higher speeds than coated carbides. It is commonly used on cast iron, steel, stainless steel and nonferrous materials.
| Product Specifications | |
|---|---|
| Insert Style | SEK |
| Insert Size | 42 |
| Material | Cermet |
| Manufacturer's Grade | 530 |
| Coating | Uncoated |
| Length (mm) | 9.60 |
| Inscribed Circle (mm) | 12.70 |
| Inscribed Circle (Inch) | 1/2 |
| Inscribed Circle (Decimal Inch) | 0.5000 |
| Thickness (mm) | 3.18 |
| Thickness (Inch) | 1/8 |
| Thickness (Decimal Inch) | 0.1250 |
| Corner Radius (Decimal Inch) | 0.0472 |
| Corner Radius (mm) | 1.20 |
| Coating Process | Uncoated |
| Included Angle | 90 |
| Shape | Square |
| Insert Hand | Neutral |
| Maximum Depth of Cut (mm) | 6.40 |
| Maximum Depth of Cut (Decimal Inch) | 0.2520 |
| Cutting Edge Style | Honed |
| Manufacturers Catalog Number | SEKN 12 03 AZ 530 |
