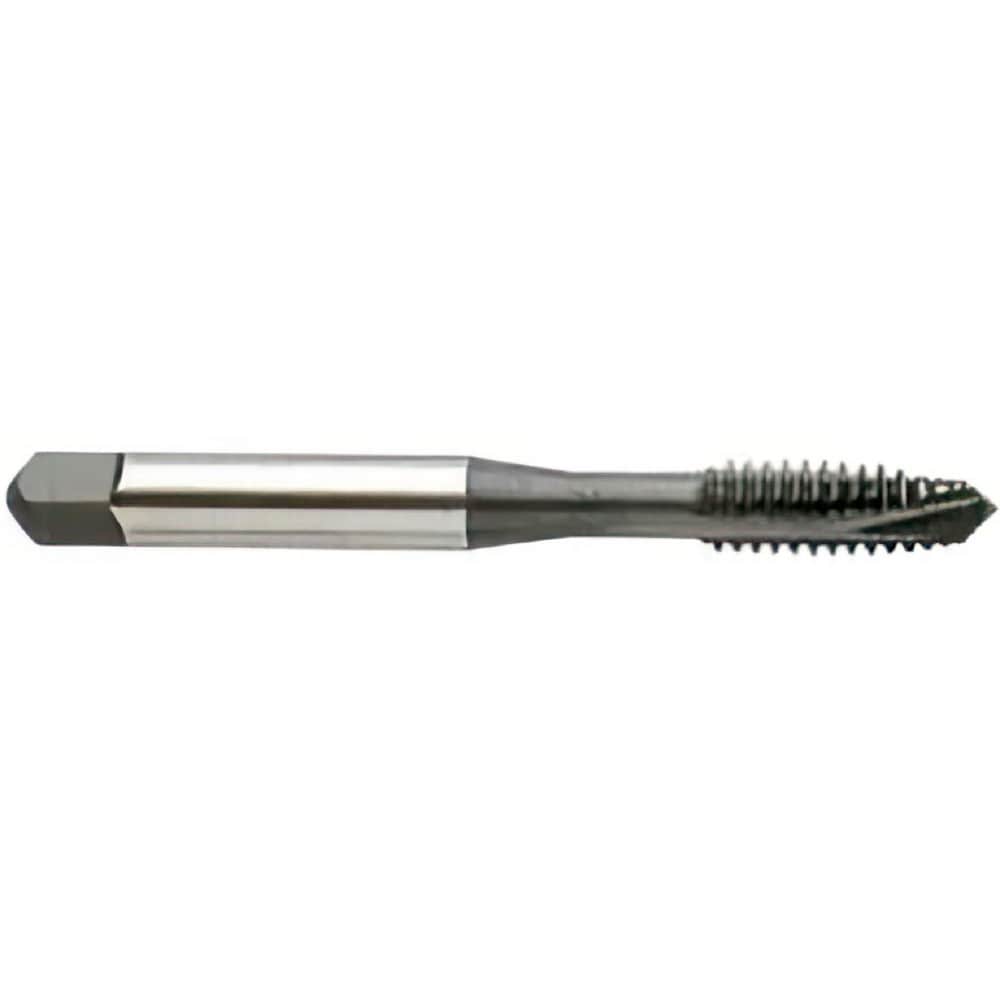

Spiral Point Tap: 3/8-24 UNF, 3 Flutes, Plug Chamfer, 3B Class of Fit, HSS, Hardslick Coated
Item #: 03881257
Brand: YG-1
Model #: L1503
Product Specifications
| Thread Size (Inch) | 3/8-24 |
| Thread Standard | UNF |
| Chamfer | Plug |
| Material | HSS |
| Thread Limit | H3 |
| Class Of Fit | 3B |
| Coating/Finish | Hardslick |
| Thread Direction | Right Hand |
| Coolant Through | No |
| Number Of Flutes | 3 |
| Material Application | Ductile Iron; Stainless Steel; Carbon Steel; Chilled Cast Iron; Nodular Cast Iron; Aluminum Cast Alloy |
| Oversize | No |
| Interrupted Thread | No |
| Threads per Inch | 24 |
| Overall Length (Inch) | 2-15/16 |
| Thread Pitch (Decimal Inch) | 0.0417 |
| Overall Length (Decimal Inch) | 2.9375 |
| Thread Length (Decimal Inch) | 1.2500 |
| Thread Length (Inch) | 1-1/4 |
| Shank Diameter (Decimal Inch) | 0.3810 |
| Application | Through-Hole Threading |
| Measurement Type | Fractional Inch |
| Series | L1 |
| Style | Spiral Point |
| UNSPSC Code | 23241600 |
