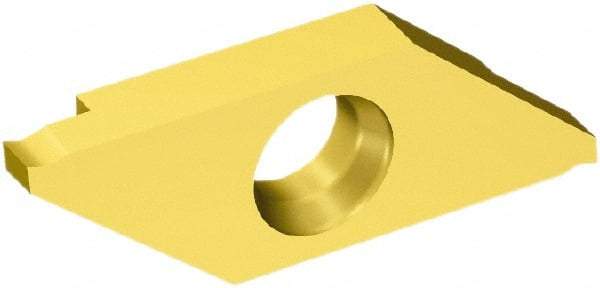

Sandvik Coromant - 3MAG MAG Grade 1025, 2mm Cutting Width Carbide Grooving Insert - 3.7mm Max Depth of Cut, Right Hand, 0.05mm Corner Radius, TiCN/TiN Finish
Item #: 52079829
Brand: Sandvik Coromant
Model #: 5735469
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat resistant and used for high speed applications. It is commonly used on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | MAG |
| Insert Size | 3 |
| Material | Carbide |
| Cutting Width (mm) | 2.00 |
| Cutting Width (Decimal Inch) | 0.0787 |
| Maximum Depth of Cut (mm) | 3.70 |
| Maximum Depth of Cut (Decimal Inch) | 0.1457 |
| Manufacturer's Grade | 1025 |
| Coating | TiCN/TiN |
| Cutting Direction | Right Hand |
| Insert Hand | Right Hand |
| Cutting Height (mm) | 3.18 |
| Cutting Height (Inch) | 1/8 |
| Cutting Height (Decimal Inch) | 0.1250 |
| Relief Angle | 6 |
| Insert Seat Size | 3 |
| Chipbreaker | MAG |
| Multi-Use Tool | Yes |
| Multi-Use Application | Parting; Grooving; Slitting; Slotting; Plunging |
| Minimum Corner Radius (Decimal Inch) | 0.0012 |
| Maximum Corner Radius (Decimal Inch) | 0.0028 |
| Corner Radius (mm) | 0.05 |
| Corner Radius (Decimal Inch) | 0.0020 |
| Coating Process | PVD |
| Overall Length (mm) | 12.02 |
| Overall Length (Decimal Inch) | 0.4732 |
| Series | CoroCut XS |
| Rake Angle | 0 |
| Rake | Neutral |
| ISO Number | MAGR 3 200 1025 |
| Manufacturers Catalog Number | MAGR 3 200 1025 |
| Overall Width (mm) | 2.00 |
| Overall Width (Decimal Inch) | 0.0787 |
| Insert Thickness (Decimal Inch) | 0.1250 |
