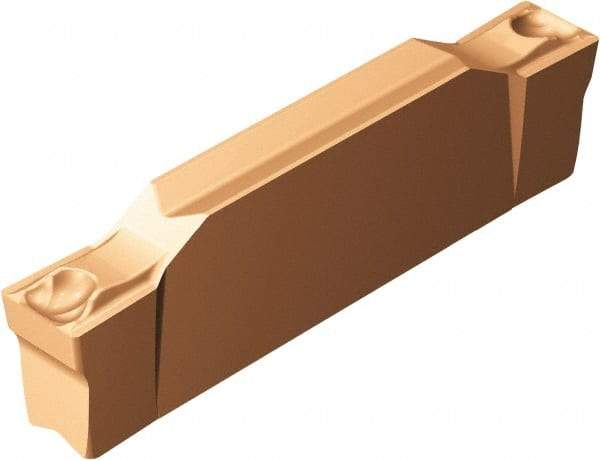

Sandvik Coromant - HN123 GF Grade 1125, 4.7mm Cutting Width Carbide Grooving Insert - 24.1mm Max Depth of Cut, Neutral, 0.5mm Corner Radius, TiAlN Finish
Item #: 52078581
Brand: Sandvik Coromant
Model #: 5736049
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat resistant and used for high speed applications. It is commonly used on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | N123 |
| Insert Size | H |
| Material | Carbide |
| Cutting Width (mm) | 4.70 |
| Cutting Width (Decimal Inch) | 0.1850 |
| Maximum Depth of Cut (mm) | 24.10 |
| Maximum Depth of Cut (Decimal Inch) | 0.9488 |
| Manufacturer's Grade | 1125 |
| Coating | TiAlN |
| Cutting Direction | Neutral |
| Insert Hand | Neutral |
| Cutting Height (mm) | 4.35 |
| Cutting Height (Decimal Inch) | 0.1713 |
| Relief Angle | 7 |
| Insert Seat Size | H |
| Chipbreaker | GF |
| Multi-Use Tool | Yes |
| Multi-Use Application | Parting; Grooving; Slitting; Slotting; Plunging |
| Minimum Corner Radius (Decimal Inch) | 0.0177 |
| Maximum Corner Radius (Decimal Inch) | 0.0217 |
| Corner Radius (mm) | 0.50 |
| Corner Radius (Decimal Inch) | 0.0197 |
| Coating Process | PVD |
| Overall Length (mm) | 25.05 |
| Overall Length (Decimal Inch) | 0.9862 |
| Series | CoroCut 1-2 |
| Rake Angle | 0 |
| Rake | Neutral |
| ISO Number | N123H2-0470-0005-GF 1125 |
| Manufacturers Catalog Number | N123H2-0470-0005-GF 1125 |
| Overall Width (mm) | 4.70 |
| Overall Width (Decimal Inch) | 0.1850 |
| Insert Thickness (Decimal Inch) | 0.1713 |
