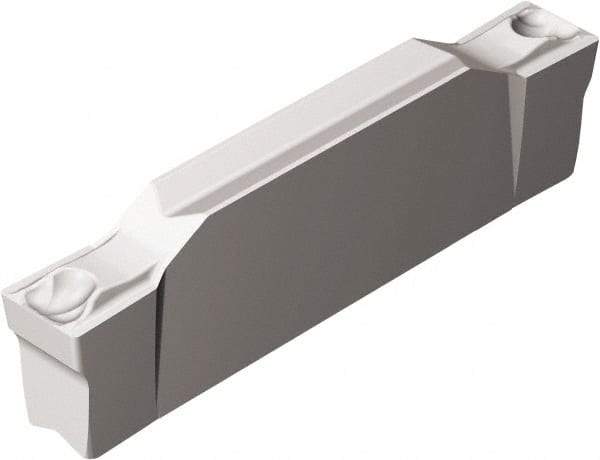

Sandvik Coromant - EN123 GF Grade 525, 2mm Cutting Width Cermet Grooving Insert - 19.2mm Max Depth of Cut, Neutral, 0.2mm Corner Radius, Uncoated
Item #: 52078318
Brand: Sandvik Coromant
Model #: 5735784
Exact Tooling IR#: 04
Features and Benefits
Cermet is comprised of ceramic and metal and can be used at higher speeds than coated carbides. It is commonly used on cast iron, steel, stainless steel and nonferrous materials.
| Product Specifications | |
|---|---|
| Insert Style | N123 |
| Insert Size | E |
| Material | Cermet |
| Cutting Width (mm) | 2.00 |
| Cutting Width (Decimal Inch) | 0.0787 |
| Maximum Depth of Cut (mm) | 19.20 |
| Maximum Depth of Cut (Decimal Inch) | 0.7559 |
| Manufacturer's Grade | 525 |
| Coating | Uncoated |
| Cutting Direction | Neutral |
| Insert Hand | Neutral |
| Cutting Height (mm) | 4.30 |
| Cutting Height (Decimal Inch) | 0.1693 |
| Relief Angle | 7 |
| Insert Seat Size | E |
| Chipbreaker | GF |
| Multi-Use Tool | Yes |
| Multi-Use Application | Parting; Grooving; Slitting; Slotting; Plunging |
| Minimum Corner Radius (Decimal Inch) | 0.0059 |
| Maximum Corner Radius (Decimal Inch) | 0.0098 |
| Corner Radius (mm) | 0.2 |
| Corner Radius (Decimal Inch) | 0.0079 |
| Coating Process | Uncoated |
| Overall Length (mm) | 20.05 |
| Overall Length (Decimal Inch) | 0.7894 |
| Series | CoroCut 1-2 |
| Rake Angle | 0 |
| Rake | Neutral |
| ISO Number | N123E2-0200-0002-GF 525 |
| Manufacturers Catalog Number | N123E2-0200-0002-GF 525 |
| Overall Width (mm) | 2.00 |
| Overall Width (Decimal Inch) | 0.0787 |
| Insert Thickness (Decimal Inch) | 0.1693 |
