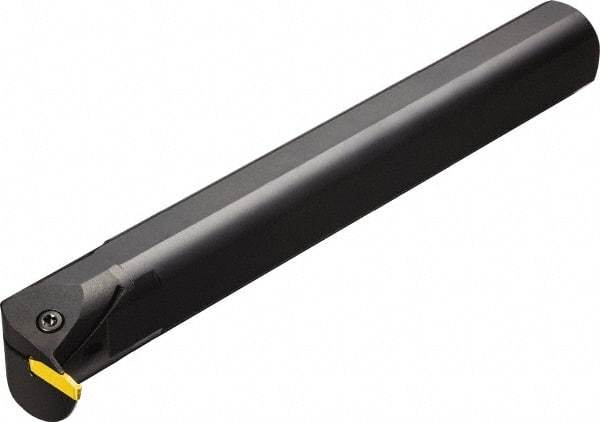

Sandvik Coromant - Internal, Internal, Right Hand, 10.922mm Max Depth of Cut, 2 to 5mm Groove Width, Indexable Grooving Tool Holder - N123H2-GM Insert Compatibility, 37.084mm Shank Height, 1-1/2" Shank Width, 300mm OAL, Through Coolant
Item #: 52069366
Brand: Sandvik Coromant
Model #: 5739609
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Internal or External | Internal |
| Toolholder Type | NonFace Grooving |
| Hand of Holder | Right Hand |
| Maximum Depth of Cut | 0.4300 |
| Maximum Depth of Cut (Decimal Inch) | 0.4300 |
| Maximum Depth of Cut (mm) | 10.92 |
| Minimum Groove Width (Decimal Inch) | 0.0787 |
| Minimum Groove Width (mm) | 2.00 |
| Maximum Groove Width (mm) | 5.00 |
| Maximum Groove Width (Decimal Inch) | 0.1969 |
| Overall Length (mm) | 300.00 |
| Overall Length (Decimal Inch) | 11.8110 |
| Toolholder Style | Internal |
| Insert Compatibility | N123H2-GM |
| Shank Height (mm) | 37.08 |
| Shank Height (Decimal Inch) | 1.4600 |
| Shank Width/Diameter (Inch) | 1-1/2 |
| Shank Width/Diameter (mm) | 38.10 |
| Shank Width/Diameter (Decimal Inch) | 1.5000 |
| Series | CoroCut 1-2 |
| Through Coolant | Through Coolant |
| Through Coolant | Coolant Through |
| Multi-Use Tool | Yes |
| Multi-Use Application | Profiling; Grooving |
| Insert Holding Method | Clamp |
| Insert Seat Size | H |
| Number of Inserts Used on Toolholder | 1 |
| Minimum Hole Diameter (mm) | 38.10 |
| Minimum Hole Diameter (Decimal Inch) | 1.5000 |
| Maximum Hole Depth (Decimal Inch) | 152.4000 |
| Maximum Bore Depth (Decimal Inch) | 6.0000 |
| igrvh Maximum Bore Depth (mm) | 152.40 |
| Maximum Workpiece Diameter (mm) | 38.10 |
| Maximum Workpiece Diameter (Decimal Inch) | 1.5000 |
| Back of Bar to Cutting Edge (mm) | 300.00 |
| Back of Bar to Cutting Edge (Decimal Inch) | 11.8110 |
| Head Length (mm) | 55.00 |
| Head Length (Decimal Inch) | 2.1654 |
| Mount Type | Straight Mount |
| Full Radius Insert | Yes |
| Shank Length (mm) | 300.00 |
| Shank Length (Decimal Inch) | 11.8110 |
| Manufacturers Catalog Number | RAG123H043-24B |
| Toolholder Material | Steel |
| Complete Insert Compatibility | N123H2-GM |
| Minimum Bore Diameter (Decimal Inch) | 1.9685 |
| Minimum BoreDiameter (mm) | 50.00 |
| Shank Diameter (Decimal Inch) | 1.5000 |
| Shank Diameter (mm) | 38.10 |
