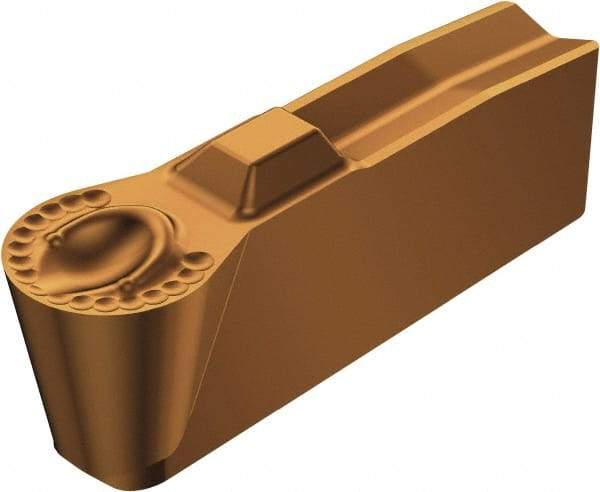

Sandvik Coromant - 50N151.3 7P Grade 1125, 6mm Cutting Width Carbide Grooving Insert - Neutral, TiAlN Finish
Item #: 52068731
Brand: Sandvik Coromant
Model #: 5737019
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat resistant and used for high speed applications. It is commonly used on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | N151.3 |
| Insert Size | 50 |
| Material | Carbide |
| Cutting Width (mm) | 6.00 |
| Cutting Width (Decimal Inch) | 0.2362 |
| Manufacturer's Grade | 1125 |
| Coating | TiAlN |
| Cutting Direction | Neutral |
| Insert Hand | Neutral |
| Cutting Height (mm) | 6.11 |
| Cutting Height (Decimal Inch) | 0.2404 |
| Relief Angle | 11 |
| Insert Seat Size | 50 |
| Chipbreaker | 7P |
| Multi-Use Tool | Yes |
| Multi-Use Application | Parting; Grooving; Slitting; Slotting; Plunging |
| Coating Process | PVD |
| Overall Length (mm) | 7.90 |
| Overall Length (Decimal Inch) | 0.3110 |
| Series | T-Max Q-Cut |
| Rake Angle | 0 |
| Rake | Neutral |
| ISO Number | N151.3-600-50-7P 1125 |
| Manufacturers Catalog Number | N151.3-600-50-7P 1125 |
| Overall Width (mm) | 6.00 |
| Overall Width (Decimal Inch) | 0.2362 |
| Insert Thickness (Decimal Inch) | 0.2404 |
