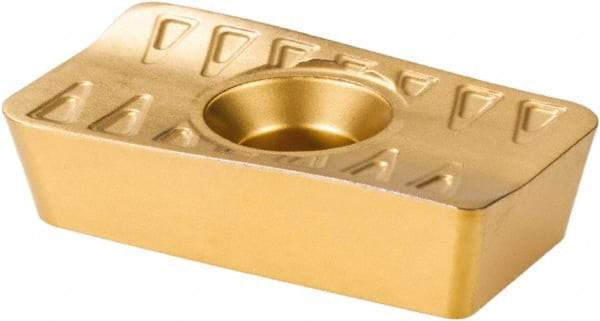

Sandvik Coromant - LPMH250610 MM Grade 2040 Carbide Milling Insert - TiCN/Al2O3/TiN Finish, 1/4" Thick, 1mm Corner Radius
Item #: 52063013
Brand: Sandvik Coromant
Model #: 5734678
Exact Tooling IR#: 04
Features and Benefits
Solid carbide provides better rigidity than high speed steel. It is extremely heat resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | LPMH |
| Insert Size | 250610 |
| Material | Carbide |
| Manufacturer's Grade | 2040 |
| Coating | TiCN/Al2O3/TiN |
| Width (mm) | 14.27 |
| Width (Decimal Inch) | 0.5620 |
| Length (mm) | 21.59 |
| Thickness (mm) | 6.35 |
| Thickness (Inch) | 1/4 |
| Thickness (Decimal Inch) | 0.2500 |
| Corner Radius (Decimal Inch) | 0.0394 |
| Corner Radius (mm) | 1.00 |
| Hole Diameter (mm) | 5.50 |
| Hole Diameter (Decimal Inch) | 0.2165 |
| Coating Process | MTCVD |
| Included Angle | 90 |
| Shape | Rectangle |
| Insert Hand | Right Hand |
| Chipbreaker | MM |
| Cutting Edge Style | Honed |
| Manufacturers Catalog Number | LPMH 25 06 10-MM 2040 |
