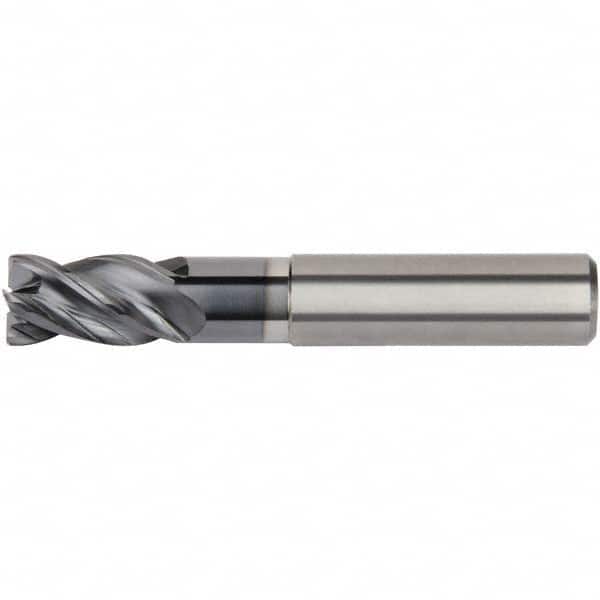

Kennametal - 16mm Diam 4 Flute Solid Carbide 4mm Corner Radius End Mill
Item #: 19018621
Brand: Kennametal
Model #: 6676287
Features and Benefits
Solid carbide provides better rigidity than high speed steel. It is extremely heat resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
Aluminum titanium nitride (AlTiN) is one of the most abrasive-resistant and hardest of the coatings. It is commonly used for machining aircraft and aerospace material, nickel alloys, stainless steel, titanium, cast iron and carbon steel.
| Product Specifications | |
|---|---|
| Mill Diameter (mm) | 16.00 |
| Mill Diameter (Decimal Inch) | 0.6299 |
| End Type | Corner Radius |
| Corner Radius (mm) | 4.00 |
| Number of Flutes | 4 |
| Material | Solid Carbide |
| Finish/Coating | AlTiN |
| Length of Cut (mm) | 24.00 |
| Shank Diameter (mm) | 16.00 |
| Overall Length (mm) | 100.00 |
| Flute Type | Spiral |
| Cutting Direction | Right Hand |
| Helix Angle | 36 |
| Variable Index | Yes |
| Variable Helix | Yes |
| Reach Length (mm) | 48.00 |
| Neck Diameter (mm) | 15.04 |
| Material Grade | KCSM15 |
| Single or Double End | Single |
| Length Type | Regular |
| Centercutting | Yes |
| Flute Direction | Right Hand |
| Extended Reach | No |
| Shank Type | Weldon |
| PSC Code | 3455 |
| Series/List | H1TE |
