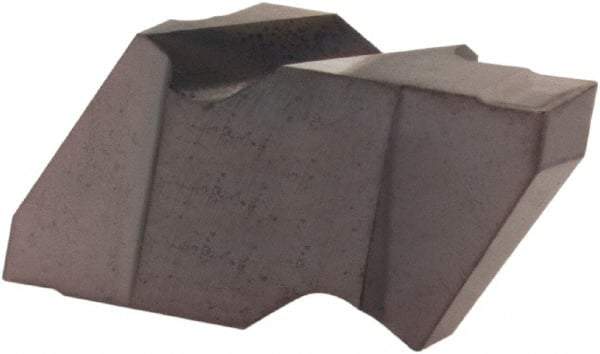

Kennametal - 4250NG Grade KCU10, 6.35mm Cutting Width Carbide Grooving Insert - 1/4" Max Depth of Cut, Left Hand, 0.0225" Corner Radius, AlTiN Finish
Item #: 51667178
Brand: Kennametal
Model #: 4176077
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat resistant and used for high speed applications. It is commonly used on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | NG |
| Insert Size | 4250 |
| Material | Carbide |
| Cutting Width (mm) | 6.35 |
| Cutting Width (Decimal Inch) | 0.2500 |
| Maximum Depth of Cut (Decimal Inch) | 0.2500 |
| Manufacturer's Grade | KCU10 |
| Coating | AlTiN |
| Insert Hand | Left Hand |
| Cutting Height (mm) | 11.51 |
| Cutting Height (Decimal Inch) | 0.4530 |
| Lead Angle | 0 |
| Insert Seat Size | 4 |
| Multi-Use Tool | No |
| Corner Radius (Decimal Inch) | 0.0225 |
| Coating Process | PVD |
| Series | Top Notch |
| Rake Angle | 0 |
| Rake | Neutral |
| Included Angle | 55 |
