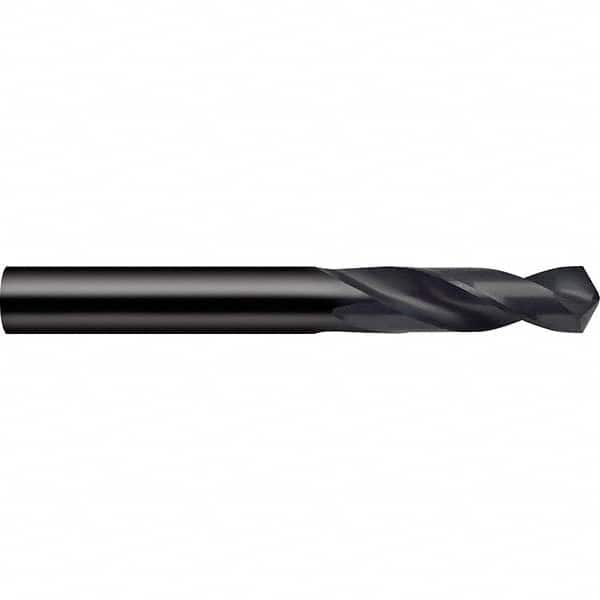

Screw Machine Length Drill Bit: 0.2835″ Dia, 118 °, High Speed Steel Oxide Finish, Right Hand Cut, Spiral Flute, Straight-Cylindrical Shank, Series 223
Item #: 51656262
Brand: Guhring
Model #: 9002230072000
Product Specifications
| Drill Bit Size (mm) | 7.20 |
| Tool Material | High Speed Steel |
| Cutting Direction | Right Hand |
| Coating/Finish | Oxide |
| Drill Point Angle | 118 |
| Spiral Type | Regular |
| Flute Type | Spiral |
| Point Type | Standard |
| Coolant Through | No |
| Shank Type | Straight-Cylindrical |
| Shank Diameter (Decimal Inch) | 0.2835 |
| Drill Bit Size (Decimal Inch) | 0.2835 |
| Overall Length (mm) | 74.00 |
| Overall Length (Decimal Inch) | 2.9134 |
| Shank Diameter (mm) | 7.20 |
| Series | 223 |
| Web Configuration | Tapered |
| Drill Length Type | Stub |
| Flute By Diameter Ratio | 3xD |
| Drill Bit Diameter Tolerance | +0.000 to -0.022 mm |
| Flute Length (mm) | 34.00 |
| Drill Bit Size Range (Decimal Inch) | 0.2500 to 0.3000 |
| Drill Bit Size Range (mm) | 6.50 to 8.00 |
| Specification Number | DIN 1897 |
| Specification Designation | DIN |
| Material Grade | M2 |
