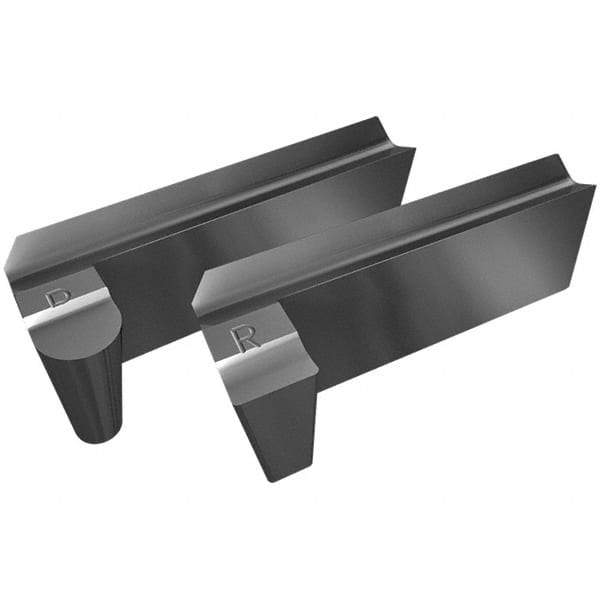

Iscar - 1282T4LPGIR P Grade IC907, 2mm Cutting Width Carbide Grooving Insert - 4mm Max Depth of Cut, Right Hand, 0.2mm Corner Radius, TiAlN Finish
Item #: 51529451
Brand: Iscar
Model #: 6405172
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat resistant and used for high speed applications. It is commonly used on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | LPGIR |
| Insert Size | 1282T4 |
| Material | Carbide |
| Cutting Width (mm) | 2.00 |
| Cutting Width (Decimal Inch) | 0.0787 |
| Maximum Depth of Cut (mm) | 4.00 |
| Maximum Depth of Cut (Decimal Inch) | 0.1575 |
| Material Grade | Submicron |
| Manufacturer's Grade | IC907 |
| Coating | TiAlN |
| Insert Hand | Right Hand |
| Chipbreaker | P |
| Multi-Use Tool | No |
| Corner Radius (mm) | 0.20 |
| Corner Radius (Decimal Inch) | 0.0080 |
| Coating Process | PVD |
| Overall Length (Decimal Inch) | 1.1810 |
| Series | Cut Grip |
