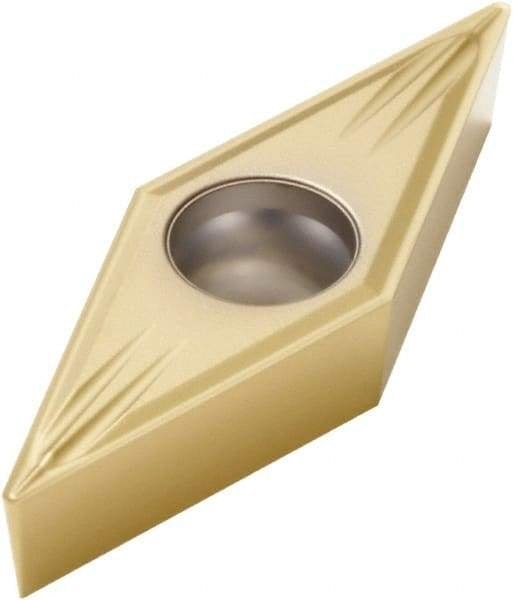

Seco - VBMT21.51 MF2 Grade CP500 Carbide Turning Insert - TiAlN/TiN Finish, 35° Diamond, 1/4" Inscr Circle, 3/32" Thick, 1/64" Corner Radius
Item #: 51473403
Brand: Seco
Model #: 66953
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat-resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | VBMT |
| Insert Size | 21.51 |
| Material | Carbide |
| Inscribed Circle (mm) | 6.35 |
| Inscribed Circle (Decimal Inch) | 0.2500 |
| Inscribed Circle (Inch) | 1/4 |
| Thickness (Inch) | 3/32 |
| Thickness (Decimal Inch) | 0.0938 |
| Corner Radius (Inch) | 1/64 |
| Corner Radius (Decimal Inch) | 0.0156 |
| Manufacturer's Grade | CP500 |
| Coating | TiAlN/TiN |
| Material Grade | Micrograin |
| Chip Breaker | MF2 |
| Hole Diameter (Decimal Inch) | 0.1140 |
| Relief Angle | 5 |
| Coating Process | PVD |
| Primary Workpiece Material | M |
| Secondary Workpiece Material | P; S |
| Included Angle | 35 |
| Insert Hand | Neutral |
| Insert Holding Method | Screw |
| Shape | Diamond |
