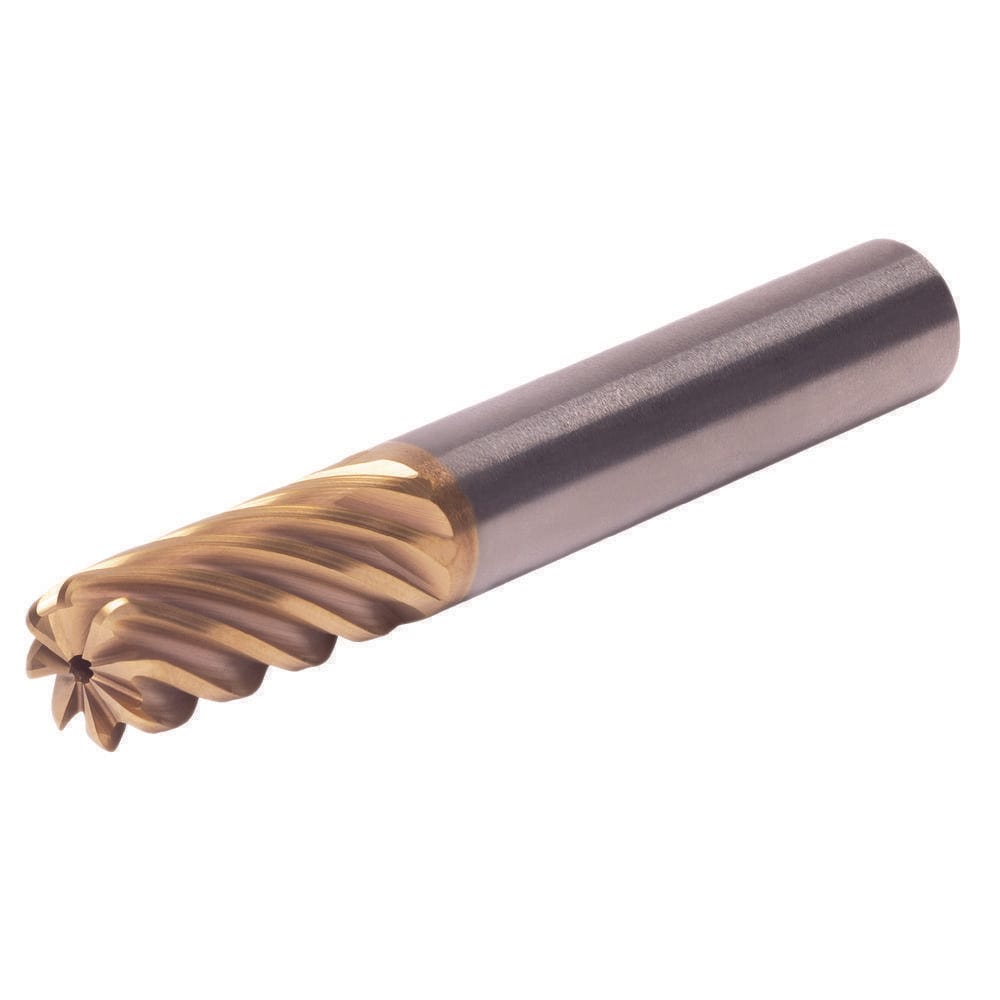

Corner Radius End Mill: 10 mm Dia, 22.00 mm LOC, 0.50 mm Radius, 8 Flute, Solid Carbide
Item #: 09361007
Brand: Kennametal
Model #: 7104182
Product Specifications
| Mill Diameter (Decimal Inch) | 0.3937 |
| Mill Diameter (mm) | 10 |
| Number Of Flutes | 8 |
| Length of Cut (mm) | 22.00 |
| Single Or Double End | Single |
| End Mill Material | Solid Carbide |
| Coating/Finish | AlCrN |
| Centercutting | No |
| Flute Direction | Right Hand |
| Corner Radius (Decimal Inch) | 0.0197 |
| Variable Index | Yes |
| Variable Helix | Yes |
| Cutting Direction | Right Hand |
| Corner Radius (mm) | 0.50 |
| Overall Length (mm) | 72 |
| Coolant Through | Yes |
| Overall Length (Decimal Inch) | 2.8346 |
| Chipbreaker | Yes |
| End Type | Corner Radius |
| Length Of Cut (Decimal Inch - 4 Decimals) | 0.8661 |
| Flute Type | Spiral |
| Extended Reach | No |
| Shank Type | Straight-Cylindrical |
| Shank Diameter (Decimal Inch) | 0.3937 |
| Shank Diameter (mm) | 10.00 |
| UNSPSC Code | 27112803 |
| Series | HARVI IV |
