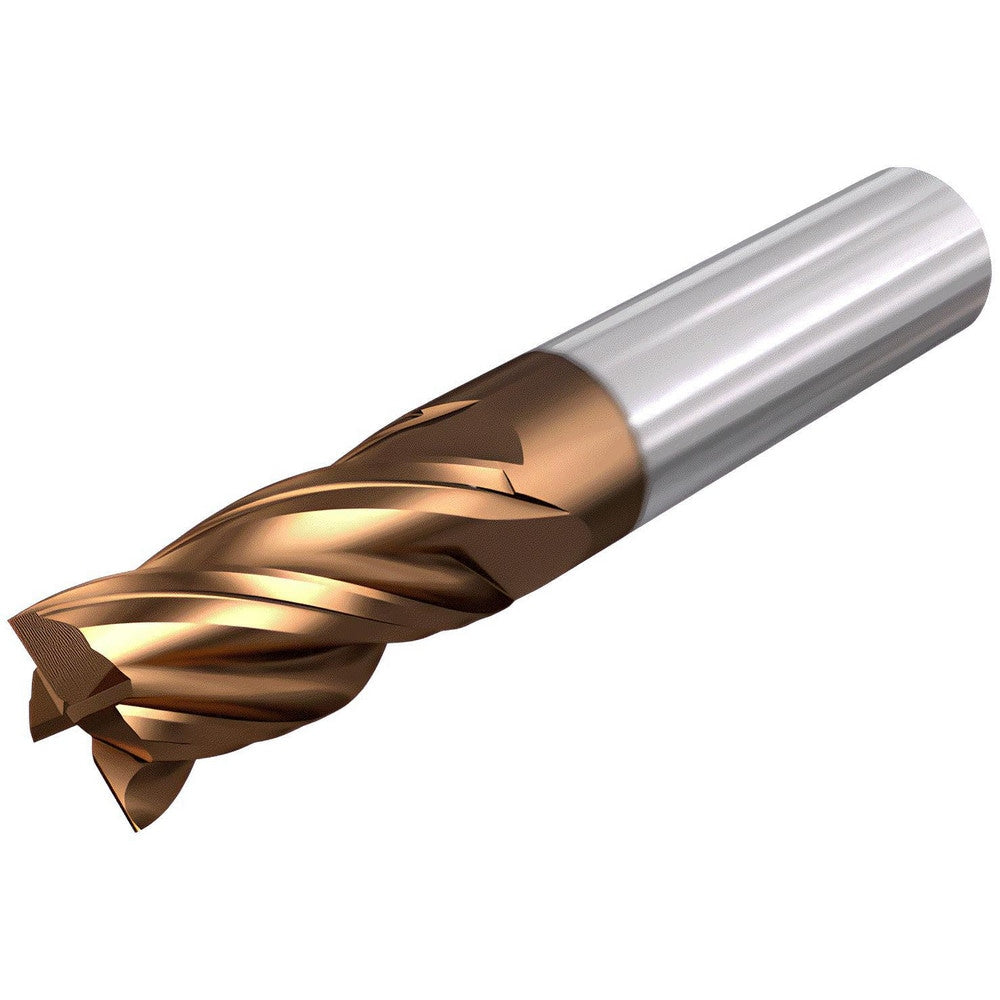

Corner Radius End Mill: 3/4" Dia, 1-5/8" LOC, 0.0150" Radius, 4 Flute, Solid Carbide
Item #: 18179135
Brand: Iscar
Model #: 3401089
Product Specifications
| Mill Diameter (Inch) | 3/4 |
| Mill Diameter (Decimal Inch) | 0.7500 |
| Number Of Flutes | 4 |
| Length of Cut (Inch) | 1-5/8 |
| Single Or Double End | Single |
| End Mill Material | Solid Carbide |
| Chipbreaker | No |
| Coating/Finish | AlTiCrSiN |
| Overall Length (Inch) | 4 |
| Centercutting | Yes |
| Flute Direction | Right Hand |
| Corner Radius (Decimal Inch) | 0.0150 |
| Variable Index | Yes |
| Variable Helix | No |
| Cutting Direction | Right Hand |
| Coolant Through | No |
| Pitch | Normal |
| Overall Length (Decimal Inch) | 4.0000 |
| End Type | Corner Radius |
| Length Of Cut (Decimal Inch - 4 Decimals) | 1.2598 |
| Length Type | Standard |
| Flute Type | Spiral |
| Extended Reach | Yes |
| Shank Type | Weldon Flat |
| Material Removal Type | Roughing & Finishing |
| Shank Diameter (Decimal Inch) | 0.7500 |
| Shank Diameter (Inch) | 3/4 |
| Reach Length (Decimal Inch) | 1.6250 |
| Reach Length (Inch) | 1-5/8 |
| Shank Diameter Tolerance | h6 |
| Primary Workpiece Material | Hard Material; Stainless Steel; Cast Iron; Superalloys & Titanium; Steel |
| UNSPSC Code | 27112803 |
| Primary Workpiece Material Code | P; S; H; K; M |
| Material Grade | Submicron |
| Series | ECI-4-VF |
| Material Application | Hard Material; Stainless Steel; Cast Iron; Superalloys & Titanium; Steel |
| Coating Classification | PVD |
| For Use With. | Toolholders |
| Manufacturers Catalog Number | ECI-4 750-1.62W015VF4 |
| Mill Diameter (Inch) | 3/4 |
| Mill Diameter (Decimal Inch) | 0.7500 |
| Number Of Flutes | 4 |
| Length of Cut (Inch) | 1-5/8 |
| Single Or Double End | Single |
| End Mill Material | Solid Carbide |
| Chipbreaker | No |
| Coating/Finish | AlTiCrSiN |
| Overall Length (Inch) | 4 |
| Centercutting | Yes |
| Flute Direction | Right Hand |
| Corner Radius (Decimal Inch) | 0.0150 |
| Variable Index | Yes |
| Variable Helix | No |
| Cutting Direction | Right Hand |
| Coolant Through | No |
| Pitch | Normal |
| Overall Length (Decimal Inch) | 4.0000 |
| End Type | Corner Radius |
| Length Of Cut (Decimal Inch - 4 Decimals) | 1.2598 |
| Length Type | Standard |
| Flute Type | Spiral |
| Extended Reach | Yes |
| Shank Type | Weldon Flat |
| Material Removal Type | Roughing & Finishing |
| Shank Diameter (Decimal Inch) | 0.7500 |
| Shank Diameter (Inch) | 3/4 |
| Reach Length (Decimal Inch) | 1.6250 |
| Reach Length (Inch) | 1-5/8 |
| Shank Diameter Tolerance | h6 |
| Primary Workpiece Material | Hard Material; Stainless Steel; Cast Iron; Superalloys & Titanium; Steel |
| UNSPSC Code | 27112803 |
| Primary Workpiece Material Code | P; S; H; K; M |
| Material Grade | Submicron |
| Series | ECI-4-VF |
| Material Application | Hard Material; Stainless Steel; Cast Iron; Superalloys & Titanium; Steel |
| Coating Classification | PVD |
| For Use With. | Toolholders |
| Manufacturers Catalog Number | ECI-4 750-1.62W015VF4 |
| MSC Part # | 18179135 |
| Mfr Part # | 3401089 |
| Country of Origin Country of Origin is subject to change | UNITED STATES |
