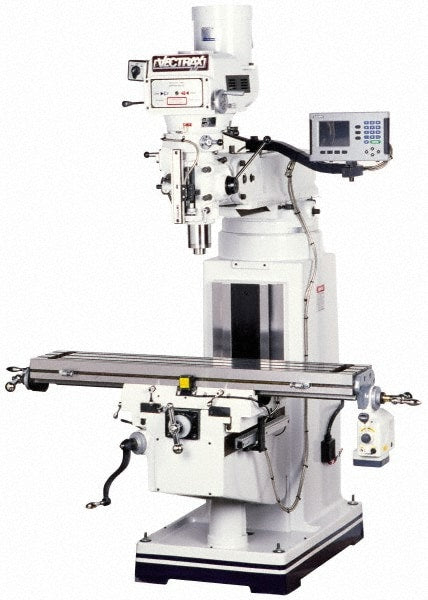

9" x 49" Knee Milling Machine: 3 hp, Variable Speed Pulley, 3 Phase
Item #: 84238849
Brand: Vectrax
Model #: OUR STOCK - A
Product Specifications
| Minimum Spindle Speed | 80 |
| Table Length (Inch) | 49 |
| Table Width (Inch) | 9 |
| Maximum Spindle Speed | 4200 |
| Forward Head Tilt (Degrees) | 45 |
| Phase | Three |
| Backward Head Tilt (Degrees) | 45 |
| Right-Hand Head Tilt (Degrees) | 90 |
| Right-hand Head Tilt | 90.0 |
| Cross Travel (Decimal Inch) | 12.0000 |
| Cross Travel | 12.0 in |
| Longitudinal Travel | 32.0 in |
| Longitudinal Travel (Decimal Inch) | 32.0000 |
| Knee Travel (Decimal Inch) | 16.0000 |
| Knee Travel | 16.0 in |
| Quill Diameter (Inch) | 3-3/8 |
| Quill Diameter (Decimal Inch) | 3.3750 |
| Horsepower | 3.00 |
| Voltage | 220V; 440V |
| Ram Travel Length (Decimal Inch) | 12.0000 |
| Ram Travel Length (Inch) | 12 |
| Spindle Speed Control | Variable Speed Pulley |
| Spindle Taper Size | R8 |
| Spindle Travel Length (Decimal Inch) | 5.0000 |
| Spindle Travel Length (Inch) | 5 |
| Overall Height (Decimal Inch) | 85.0000 |
| Overall Height (Inch) | 85 |
| Overall Length (Inch) | 59 |
| Overall Length (Decimal Inch) | 59.0000 |
| UNSPSC Code | 23242503 |
| Overall Depth (Decimal Inch) | 55.0000 |
| Overall Depth (Inch) | 55 |
