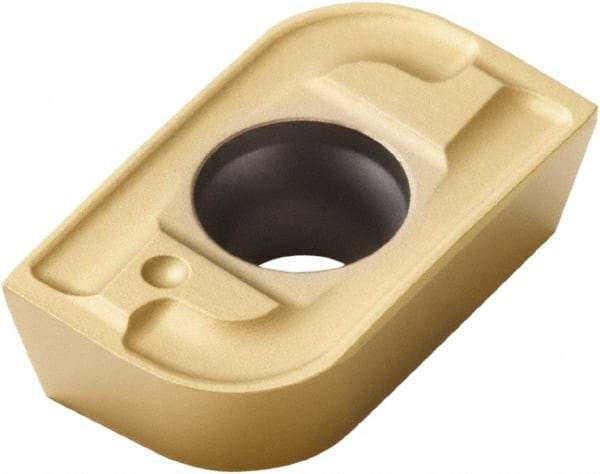

Seco - APFT160416 M13 Grade F40M Carbide Milling Insert - TiAlN/TiN Finish, 0.187" Thick, 1/16" Corner Radius
Item #: 51130185
Brand: Seco
Model #: 23912
Exact Tooling IR#: 04
Features and Benefits
Solid carbide provides better rigidity than high speed steel. It is extremely heat resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | APFT |
| Insert Size | 160416 |
| Material | Carbide |
| Manufacturer's Grade | F40M |
| Coating | TiAlN/TiN |
| Width (Decimal Inch) | 0.3750 |
| Length (Decimal Inch) | 0.6690 |
| Thickness (Decimal Inch) | 0.1870 |
| Corner Radius (Decimal Inch) | 0.0630 |
| Relief Angle | 11.000 |
| Rake Angle | 15 |
| Rake | Positive |
| Coating Process | PVD |
| Included Angle | 85 |
| Shape | Parallelogram |
| Chipbreaker | M13 |
| ISO Number | APFT 160416R-M13 |
