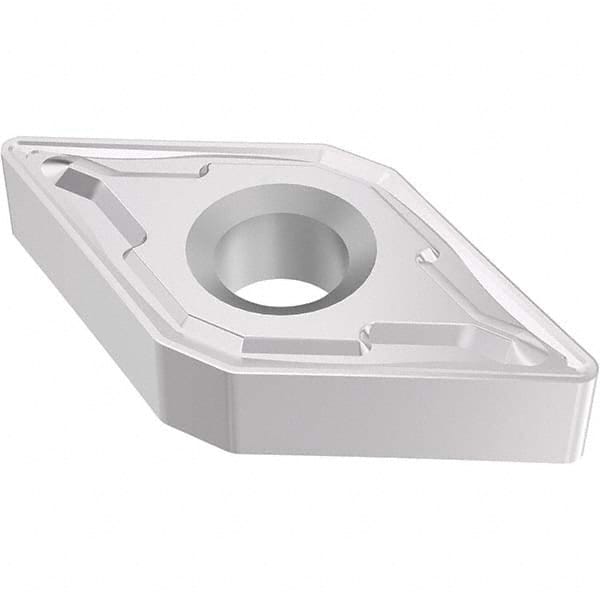

Seco - DNMG443 M5 Grade TM1501 Carbide Turning Insert
Item #: 99920118
Brand: Seco
Model #: 03274022
Features and Benefits
Solid carbide is extremely heat-resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | DNMG |
| Insert Size | 443 |
| Material | Carbide |
| Length (Decimal Inch) | 0.4980 |
| Inscribed Circle (Inch) | 1/2 |
| Thickness (Inch) | 1/4 |
| Corner Radius (Inch) | 3/64 |
| Manufacturer's Grade | TM1501 |
| Coating | TiCN/Al2O3 |
| Chip Breaker | M5 |
| Overall Length (Decimal Inch) | 0.6102 |
| Hole Diameter (Decimal Inch) | 0.2028 |
| ISO Number | DNMG150612 |
| Lead Angle | 93.000 |
| Rake | Negative |
| Rake Angle | 17 |
| Coating Process | CVD |
| Manufacturers Catalog Number | DNMG443-M5 |
| Included Angle | 55 |
| Cutting Direction | Neutral |
| Insert Hand | Neutral |
| Insert Holding Method | Pin & Clamp |
| Cutting Edge Style | Honed |
| FullRadius | No |
| Multi Use Application | Turning |
| MultiUseTool | Yes |
| Shape | Diamond |
