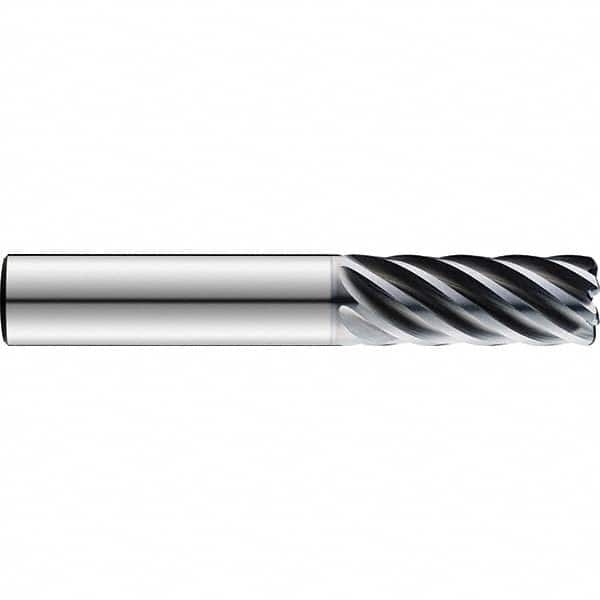

SGS - 3/4" Diam 7 Flute Solid Carbide 0.06" Corner Radius End Mill
Item #: 15163900
Brand: SGS
Model #: 77284
Features and Benefits
Solid carbide provides better rigidity than high speed steel. It is extremely heat resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Mill Diameter (Inch) | 3/4 |
| End Type | Corner Radius |
| Corner Radius (Decimal Inch) | 0.06 |
| Number of Flutes | 7 |
| Material | Solid Carbide |
| Finish/Coating | TI-NAMITE-A |
| Length of Cut (mm) | 76.20 |
| Length of Cut (Inch) | 3 |
| Length of Cut (Decimal Inch) | 3.0000 |
| Shank Diameter (mm) | 19.05 |
| Shank Diameter (Inch) | 3/4 |
| Overall Length (mm) | 133.35 |
| Overall Length (Inch) | 5-1/4 |
| Flute Type | Spiral |
| Cutting Direction | Right Hand |
| Helix Angle | 37 |
| Variable Index | Yes |
| Variable Helix | No |
| Material Grade | Micrograin |
| Single or Double End | Single |
| Minimum Helix Angle | 37 |
| Maximum Helix Angle | 37 |
| Length Type | Extra Long |
| Centercutting | No |
| Flute Direction | Right Hand |
| Shank Diameter Tolerance (mm) | h6 |
| Shank Diameter Tolerance (Decimal Inch) | h6 |
| Extended Reach | No |
| Overall Length Tolerance (mm) | 0.062 to -0.062 |
| Overall Length Tolerance (Decimal Inch) | 0.062 to -0.062 |
| Shank Type | Round |
| PSC Code | 3445 |
| Series/List | 77 |
| Chipbreaker | No |
