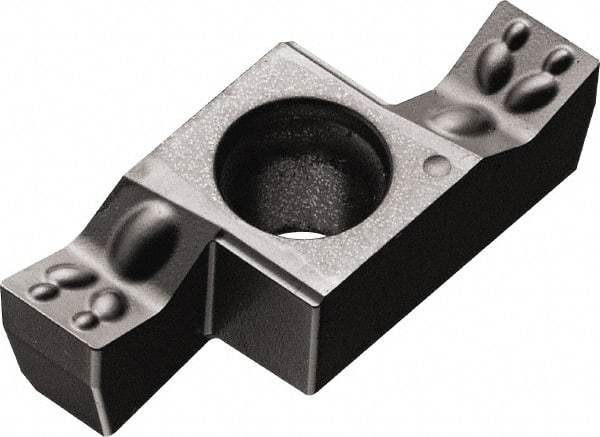

Kyocera - 150GE CM Grade PR1025, 1.5mm Cutting Width Carbide Grooving Insert - 2.5mm Max Depth of Cut, Right Hand, 0.1mm Corner Radius, TiCN Finish
Item #: 50469972
Brand: Kyocera
Model #: 8825440
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat resistant and used for high speed applications. It is commonly used on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | GE |
| Insert Size | 150 |
| Material | Carbide |
| Cutting Width (mm) | 1.50 |
| Cutting Width (Decimal Inch) | 0.0591 |
| Maximum Depth of Cut (mm) | 2.50 |
| Maximum Depth of Cut (Decimal Inch) | 0.0984 |
| Manufacturer's Grade | PR1025 |
| Coating | TiCN |
| Cutting Direction | Right Hand |
| Insert Hand | Right Hand |
| Cutting Height (mm) | 4.05 |
| Cutting Height (Decimal Inch) | 0.1594 |
| Relief Angle | 2 |
| Chipbreaker | CM |
| Multi-Use Tool | No |
| Corner Radius (mm) | 0.10 |
| Corner Radius (Decimal Inch) | 0.003937 |
| Coating Process | PVD |
| Overall Length (mm) | 11.48 |
| Overall Length (Decimal Inch) | 0.4520 |
| Series | Sige |
| Manufacturers Catalog Number | GER150-010CM |
| Overall Width (mm) | 5.80 |
| Overall Width (Decimal Inch) | 0.2283 |
