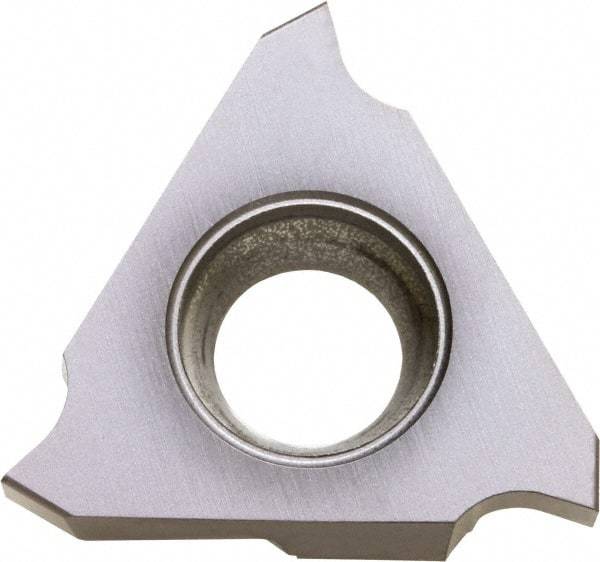

Kyocera - 43GBA GM Grade PR1215, 4mm Cutting Width Carbide Grooving Insert - 5mm Max Depth of Cut, Right Hand, 0.4mm Corner Radius, Megacoat Finish
Item #: 50468743
Brand: Kyocera
Model #: 8838260
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat resistant and used for high speed applications. It is commonly used on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | GBA |
| Insert Size | 43 |
| Material | Carbide |
| Cutting Width (mm) | 4.00 |
| Cutting Width (Decimal Inch) | 0.1575 |
| Maximum Depth of Cut (mm) | 5.00 |
| Maximum Depth of Cut (Decimal Inch) | 0.1969 |
| Material Grade | Micrograin |
| Manufacturer's Grade | PR1215 |
| Coating | Megacoat |
| Cutting Direction | Right Hand |
| Insert Hand | Right Hand |
| Relief Angle | 2 |
| Chipbreaker | GM |
| Multi-Use Tool | No |
| Corner Radius (mm) | 0.4000 |
| Corner Radius (Decimal Inch) | 0.015748 |
| Coating Process | PVD |
| Series | GBA |
| Manufacturers Catalog Number | GBA43R400-040GM |
| Insert Thickness (Decimal Inch) | 0.1870 |
