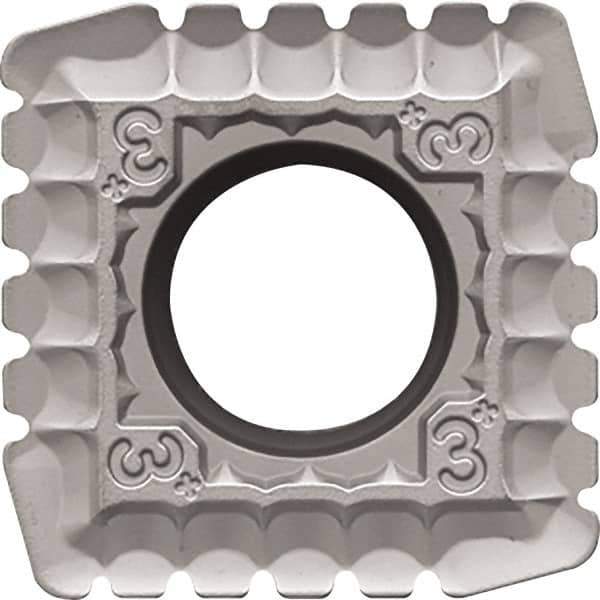

Kyocera - SPMT180616 NB3P Grade PR1230 Carbide Milling Insert - Megacoat Finish, 6.35mm Thick, 18mm Inscribed Circle
Item #: 50462159
Brand: Kyocera
Model #: 8833097
Exact Tooling IR#: 04
Features and Benefits
Solid carbide provides better rigidity than high speed steel. It is extremely heat resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | SPMT |
| Insert Size | 180616 |
| Material | Carbide |
| Manufacturer's Grade | PR1230 |
| Coating | Megacoat |
| Width (mm) | 18.00 |
| Width (Decimal Inch) | 0.7087 |
| Inscribed Circle (mm) | 18.00 |
| Inscribed Circle (Decimal Inch) | 0.7087 |
| Thickness (mm) | 6.35 |
| Thickness (Decimal Inch) | 0.2500 |
| Hole Diameter (mm) | 6.80 |
| Hole Diameter (Decimal Inch) | 0.2677 |
| Relief Angle | 11.000 |
| Coating Process | PVD |
| Shape | Square |
| Insert Hand | Neutral |
| Chipbreaker | NB3P |
| Cutting Edge Style | Honed |
| Manufacturers Catalog Number | SPMT180616EN-NB3P |
