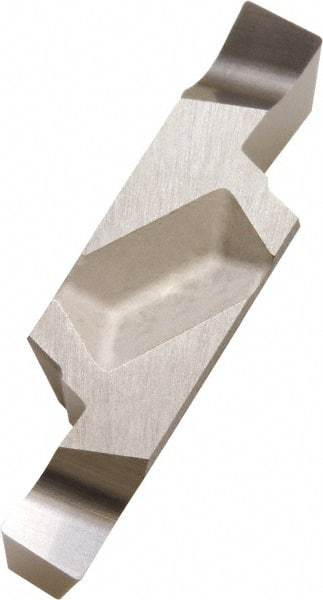

Kyocera - 250GVF B Grade KPD010, 2.5mm Cutting Width Polycrystalline Diamond (PCD) Grooving Insert - 4.8mm Max Depth of Cut, Left Hand, 0.2mm Corner Radius
Item #: 50459874
Brand: Kyocera
Model #: 8820827
Exact Tooling IR#: 04
Features and Benefits
Polycrystalline Diamond (PCD) is a synthetic diamond. It is shock resistant, wear resistant and allows for cutting at high speeds on nonferrous material.
| Product Specifications | |
|---|---|
| Insert Style | GVF |
| Insert Size | 250 |
| Material | Polycrystalline Diamond (PCD) |
| Cutting Width (mm) | 2.50 |
| Cutting Width (Decimal Inch) | 0.0984 |
| Maximum Depth of Cut (mm) | 4.80 |
| Maximum Depth of Cut (Decimal Inch) | 0.1890 |
| Manufacturer's Grade | KPD010 |
| Cutting Direction | Left Hand |
| Insert Hand | Left Hand |
| Cutting Height (mm) | 5.00 |
| Cutting Height (Decimal Inch) | 0.1969 |
| Relief Angle | 2 |
| Chipbreaker | B |
| Multi-Use Tool | Yes |
| Multi-Use Application | Facing |
| Corner Radius (mm) | 0.20 |
| Corner Radius (Decimal Inch) | 0.007874 |
| Overall Length (mm) | 20.00 |
| Overall Length (Decimal Inch) | 0.7874 |
| Series | GVF |
| Rake Angle | 14 |
| Rake | Negative |
| Manufacturers Catalog Number | GVFL250B |
| Insert Thickness (Decimal Inch) | 0.2283 |
| Insert Thickness (mm) | 5.8000 |
