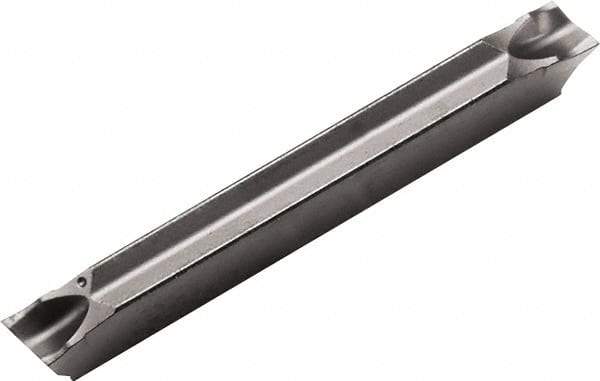

Kyocera - 2020GDM PF Grade PR1225, 2mm Cutting Width Carbide Grooving Insert - Left Hand, 0.03mm Corner Radius, Megacoat Finish
Item #: 50444439
Brand: Kyocera
Model #: 8837902
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat resistant and used for high speed applications. It is commonly used on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | GDM |
| Insert Size | 2020 |
| Material | Carbide |
| Cutting Width (mm) | 2.00 |
| Cutting Width (Decimal Inch) | 0.0787 |
| Material Grade | Micrograin |
| Manufacturer's Grade | PR1225 |
| Coating | Megacoat |
| Cutting Direction | Left Hand |
| Insert Hand | Left Hand |
| Cutting Height (mm) | 4.30 |
| Cutting Height (Decimal Inch) | 0.1693 |
| Lead Angle | 15 |
| Chipbreaker | PF |
| Multi-Use Tool | Yes |
| Multi-Use Application | Cut-Off |
| Corner Radius (mm) | 0.03 |
| Corner Radius (Decimal Inch) | 0.001181 |
| Coating Process | PVD |
| Overall Length (mm) | 20.00 |
| Overall Length (Decimal Inch) | 0.7874 |
| Series | GD |
| Manufacturers Catalog Number | GDM2020L-003PF-15D |
| Insert Thickness (Decimal Inch) | 0.0669 |
| Insert Thickness (mm) | 1.7000 |
