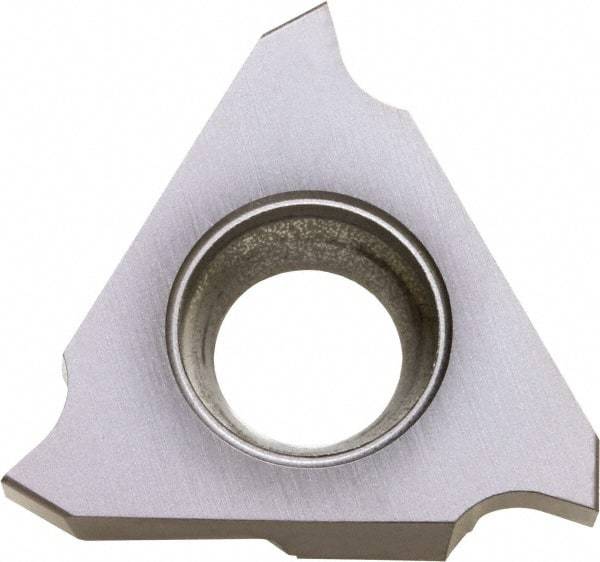

Kyocera - 32GBA Grade PV7040, 3/32" Cutting Width Cermet Grooving Insert - 0.098" Max Depth of Cut, Right Hand, 0.008" Corner Radius, TiC/TiN (Megacoat) Finish
Item #: 50443472
Brand: Kyocera
Model #: 8837022
Exact Tooling IR#: 04
Features and Benefits
Cermet is comprised of ceramic and metal and can be used at higher speeds than coated carbides. It is commonly used on cast iron, steel, stainless steel and nonferrous materials.
| Product Specifications | |
|---|---|
| Insert Style | GBA |
| Insert Size | 32 |
| Material | Cermet |
| Cutting Width (Decimal Inch) | 0.0940 |
| Maximum Depth of Cut (Decimal Inch) | 0.0980 |
| Manufacturer's Grade | PV7040 |
| Coating | TiC/TiN (Megacoat) |
| Cutting Direction | Right Hand |
| Insert Hand | Right Hand |
| Relief Angle | 2 |
| Multi-Use Tool | No |
| Corner Radius (Decimal Inch) | 0.0080 |
| Coating Process | PVD |
| Series | GBA |
| Manufacturers Catalog Number | GBA32R094N |
| Insert Thickness (Decimal Inch) | 0.1250 |
