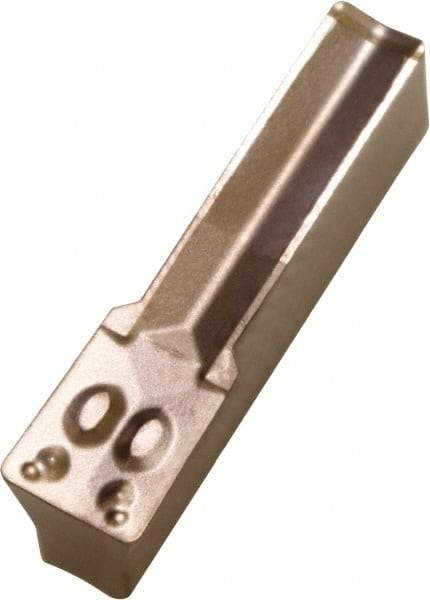

Kyocera - 50-04FMM Grade PR905, 5mm Cutting Width Carbide Grooving Insert - 0.4mm Corner Radius, TiAlN Finish
Item #: 50437524
Brand: Kyocera
Model #: 8830576
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat resistant and used for high speed applications. It is commonly used on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | FMM |
| Insert Size | 50-04 |
| Material | Carbide |
| Cutting Width (mm) | 5.00 |
| Cutting Width (Decimal Inch) | 0.1969 |
| Manufacturer's Grade | PR905 |
| Coating | TiAlN |
| Cutting Height (mm) | 3.50 |
| Cutting Height (Decimal Inch) | 0.1378 |
| Multi-Use Tool | No |
| Corner Radius (mm) | 0.40 |
| Corner Radius (Decimal Inch) | 0.015748 |
| Coating Process | PVD |
| Overall Length (mm) | 12.00 |
| Overall Length (Decimal Inch) | 0.4724 |
| Series | FMM |
| Manufacturers Catalog Number | FMM50-04 |
| Insert Thickness (Decimal Inch) | 0.1339 |
| Insert Thickness (mm) | 3.4000 |
