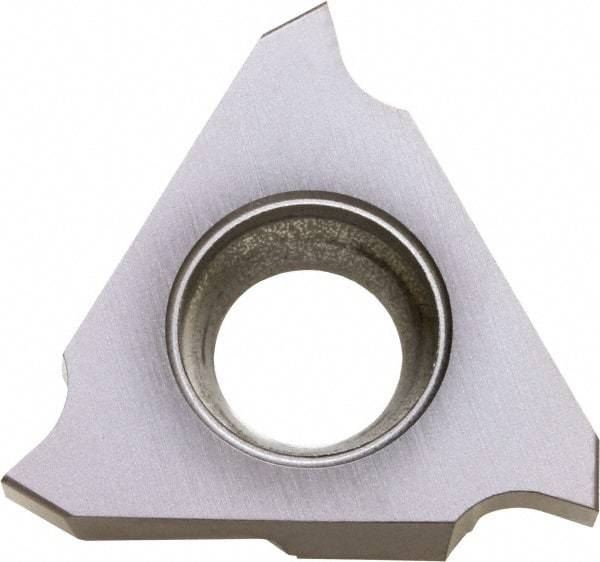

Kyocera - 43GBA Grade PR1215, 0.178" Cutting Width Carbide Grooving Insert - 0.197" Max Depth of Cut, Left Hand, 0.016" Corner Radius, Megacoat Finish
Item #: 50436716
Brand: Kyocera
Model #: 8835584
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat resistant and used for high speed applications. It is commonly used on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | GBA |
| Insert Size | 43 |
| Material | Carbide |
| Cutting Width (Decimal Inch) | 0.1780 |
| Maximum Depth of Cut (Decimal Inch) | 0.1970 |
| Material Grade | Micrograin |
| Manufacturer's Grade | PR1215 |
| Coating | Megacoat |
| Cutting Direction | Left Hand |
| Insert Hand | Left Hand |
| Relief Angle | 2 |
| Multi-Use Tool | No |
| Corner Radius (Decimal Inch) | 0.0160 |
| Coating Process | PVD |
| Series | GBA |
| Manufacturers Catalog Number | GBA43L178N |
| Insert Thickness (Decimal Inch) | 0.1870 |
