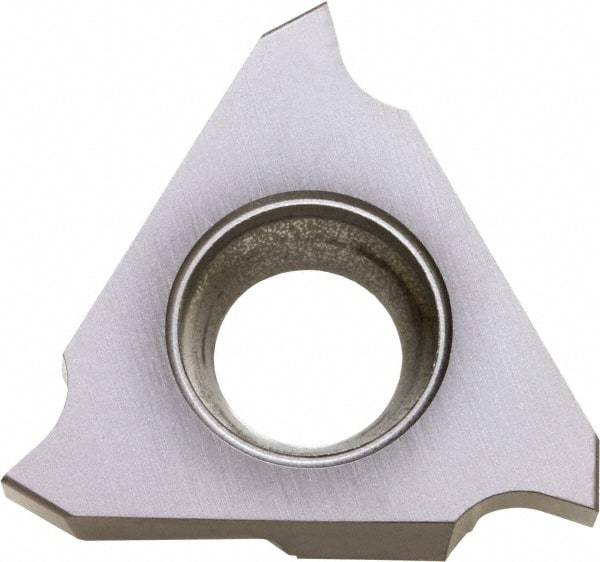

Kyocera - 43GBA Grade PR1215, 1.85mm Cutting Width Carbide Grooving Insert - 3.5mm Max Depth of Cut, Left Hand, 0.2mm Corner Radius, Megacoat Finish
Item #: 50436708
Brand: Kyocera
Model #: 8832930
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat resistant and used for high speed applications. It is commonly used on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | GBA |
| Insert Size | 43 |
| Material | Carbide |
| Cutting Width (mm) | 1.85 |
| Cutting Width (Decimal Inch) | 0.0728 |
| Maximum Depth of Cut (mm) | 3.50 |
| Maximum Depth of Cut (Decimal Inch) | 0.1378 |
| Material Grade | Micrograin |
| Manufacturer's Grade | PR1215 |
| Coating | Megacoat |
| Cutting Direction | Left Hand |
| Insert Hand | Left Hand |
| Relief Angle | 2 |
| Multi-Use Tool | No |
| Corner Radius (mm) | 0.2000 |
| Corner Radius (Decimal Inch) | 0.007874 |
| Coating Process | PVD |
| Series | GBA |
| Manufacturers Catalog Number | GBA43L185-020 |
| Insert Thickness (Decimal Inch) | 0.1870 |
