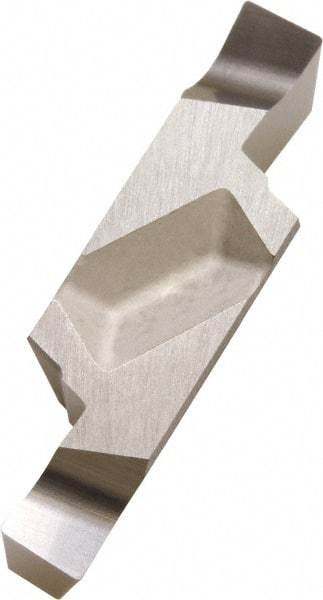

Kyocera - 500GVF C Grade PR930, 5mm Cutting Width Carbide Grooving Insert - 8.3mm Max Depth of Cut, Left Hand, 0.4mm Corner Radius, TiCN Finish
Item #: 50433119
Brand: Kyocera
Model #: 8811442
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat resistant and used for high speed applications. It is commonly used on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | GVF |
| Insert Size | 500 |
| Material | Carbide |
| Cutting Width (mm) | 5.00 |
| Cutting Width (Decimal Inch) | 0.1969 |
| Maximum Depth of Cut (mm) | 8.30 |
| Maximum Depth of Cut (Decimal Inch) | 0.3268 |
| Material Grade | Super Micrograin |
| Manufacturer's Grade | PR930 |
| Coating | TiCN |
| Cutting Direction | Left Hand |
| Insert Hand | Left Hand |
| Cutting Height (mm) | 7.00 |
| Cutting Height (Decimal Inch) | 0.2756 |
| Relief Angle | 2 |
| Chipbreaker | C |
| Multi-Use Tool | Yes |
| Multi-Use Application | Facing |
| Corner Radius (mm) | 0.40 |
| Corner Radius (Decimal Inch) | 0.015748 |
| Coating Process | PVD |
| Overall Length (mm) | 27.00 |
| Overall Length (Decimal Inch) | 1.0630 |
| Series | GVF |
| Rake Angle | 15 |
| Rake | Negative |
| Manufacturers Catalog Number | GVFL500C |
| Insert Thickness (Decimal Inch) | 0.2756 |
| Insert Thickness (mm) | 7 |
