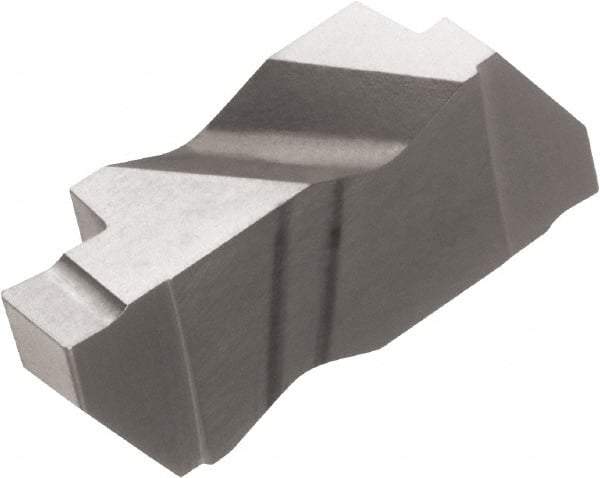

Kyocera - 3110KCGP Grade PR1215, 0.11" Cutting Width Carbide Grooving Insert - 0.15" Max Depth of Cut, Right Hand, 0.008" Corner Radius, Megacoat Finish
Item #: 50432590
Brand: Kyocera
Model #: 8850664
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat resistant and used for high speed applications. It is commonly used on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | KCGP |
| Insert Size | 3110 |
| Material | Carbide |
| Cutting Width (Decimal Inch) | 0.1100 |
| Maximum Depth of Cut (Decimal Inch) | 0.1500 |
| Material Grade | Micrograin |
| Manufacturer's Grade | PR1215 |
| Coating | Megacoat |
| Cutting Direction | Right Hand |
| Insert Hand | Right Hand |
| Cutting Height (Decimal Inch) | 0.3440 |
| Relief Angle | 3 |
| Multi-Use Tool | No |
| Corner Radius (Decimal Inch) | 0.0080 |
| Coating Process | PVD |
| Overall Length (Decimal Inch) | 0.8100 |
| Series | KCGP |
| Rake Angle | 5 |
| Manufacturers Catalog Number | KCGP3110R |
| Included Angle | 55 |
| Insert Thickness (Decimal Inch) | 0.1950 |
