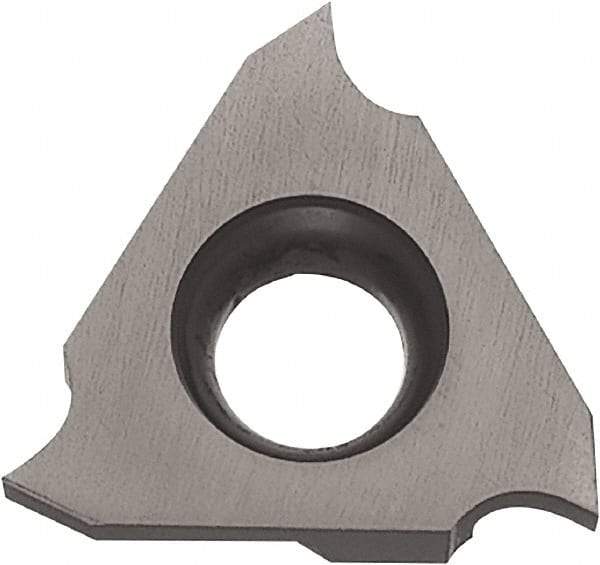

Kyocera - 32TGF Grade PR1215, 0.078" Cutting Width Carbide Grooving Insert - 0.098" Max Depth of Cut, Right Hand, 0.004" Corner Radius, Megacoat Finish
Item #: 50432178
Brand: Kyocera
Model #: 8837242
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat resistant and used for high speed applications. It is commonly used on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | TGF |
| Insert Size | 32 |
| Material | Carbide |
| Cutting Width (Decimal Inch) | 0.0780 |
| Maximum Depth of Cut (Decimal Inch) | 0.0980 |
| Material Grade | Micrograin |
| Manufacturer's Grade | PR1215 |
| Coating | Megacoat |
| Cutting Direction | Right Hand |
| Insert Hand | Right Hand |
| Relief Angle | 2 |
| Multi-Use Tool | No |
| Corner Radius (Decimal Inch) | 0.0040 |
| Coating Process | PVD |
| Series | TGF |
| Manufacturers Catalog Number | TGF32R078N |
| Insert Thickness (Decimal Inch) | 0.1252 |
| Insert Thickness (mm) | 3.1800 |
