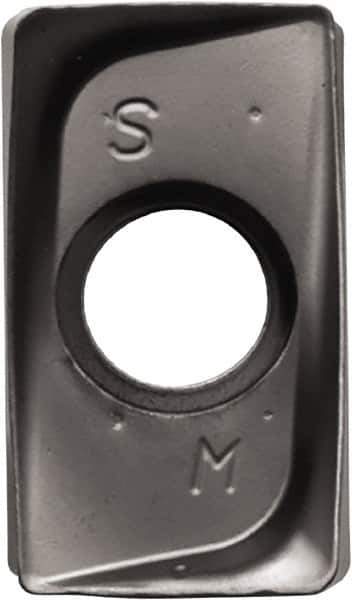

Kyocera - LOMU150508 SM Grade PR1510 Carbide Milling Insert - Megacoat Nano Finish, 5.6mm Thick, 0.8mm Corner Radius
Item #: 50430420
Brand: Kyocera
Model #: 8835790
Exact Tooling IR#: 04
Features and Benefits
Solid carbide provides better rigidity than high speed steel. It is extremely heat resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | LOMU |
| Insert Size | 150508 |
| Material | Carbide |
| Manufacturer's Grade | PR1510 |
| Coating | Megacoat Nano |
| Width (mm) | 9.20 |
| Width (Decimal Inch) | 0.3622 |
| Length (mm) | 15.70 |
| Length (Decimal Inch) | 0.6181 |
| Thickness (mm) | 5.60 |
| Thickness (Decimal Inch) | 0.2205 |
| Corner Radius (Decimal Inch) | 0.0315 |
| Corner Radius (mm) | 0.80 |
| Hole Diameter (mm) | 4.80 |
| Hole Diameter (Decimal Inch) | 0.1890 |
| Coating Process | PVD |
| Shape | Rectangle |
| Insert Hand | Right Hand |
| Chipbreaker | SM |
| Cutting Edge Style | Honed |
| Manufacturers Catalog Number | LOMU150508ERSM |
