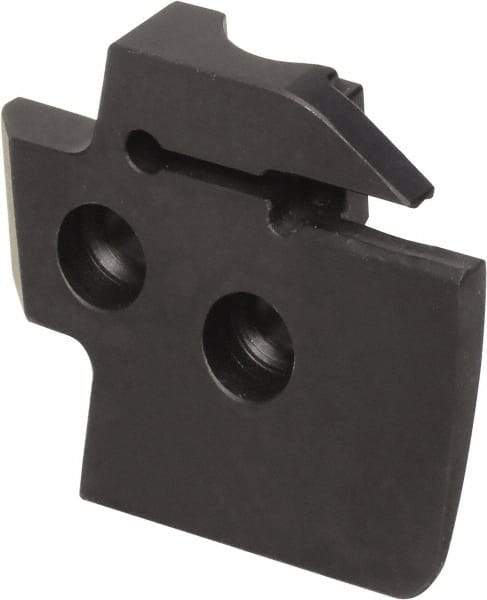

Kyocera - 1.5mm Groove Width, 13mm Max Depth of Cut, Right Hand Cut, KGDFR Indexable Grooving Blade - GD..20N-030.., GD..20N-040.. Insert Style
Item #: 50421569
Brand: Kyocera
Model #: 8837311
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Cutting Direction | Right Hand |
| Maximum Depth of Cut (mm) | 13.00 |
| Maximum Depth of Cut (Decimal Inch) | 0.5118 |
| Blade Style | KGDFR |
| Minimum Workpiece Diameter (mm) | 45.00 |
| Minimum Workpiece Diameter (Decimal Inch) | 1.7717 |
| Maximum Workpiece Diameter (mm) | 60.00 |
| Maximum Workpiece Diameter (Decimal Inch) | 2.3622 |
| Blade Height (mm) | 41.50 |
| Blade Height (Decimal Inch) | 1.6339 |
| Blade Width (mm) | 2.00 |
| Blade Width (Decimal Inch) | 0.0787 |
| Maximum Groove Width (mm) | 1.50 |
| Maximum Groove Width (Decimal Inch) | 0.0591 |
| Blade Overall Length (mm) | 44.35 |
| Blade Overall Length (Decimal Inch) | 1.7461 |
| Manufacturers Catalog Number | KGDFR452AC |
| Insert Style | GD..20N-030..; GD..20N-040.. |
| Complete Insert Compatibility | GDFM 3020N-030DM; GDFM 3020N-030GM; GDFM 4020N-040DM; GDFM 4020N-040GM; GDFM 5020N-040DM; GDFM 5020N-040GM; GDFM 6020N-040DM; GDFM 6020N-040GM; GDFMS 3020N-030DM; GDFMS 4020N-040DM; GDFMS 5020N-040DM; GDFMS 6020N-040DM |
| MSC/Manufacturer Number | 8837311 |
