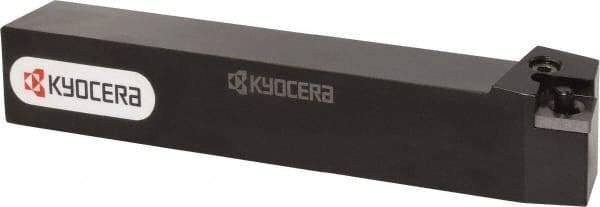

Kyocera - PSBN, Right Hand Cut, 75° Lead Angle, 25mm Shank Height x 25mm Shank Width, Negative Rake Indexable Turning Toolholder - 150mm OAL, SN.. 43.. Insert Compatibility, Series PSBN
Item #: 50417906
Brand: Kyocera
Model #: 8804680
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Hand of Holder | Right Hand |
| Toolholder Style | PSBN |
| Rake | Negative |
| Rake Angle | -6 |
| Series | PSBN |
| Lead Angle | 75 |
| Shank Width (mm) | 25.00 |
| Shank Width (Decimal Inch) | 0.9843 |
| Shank Height (mm) | 25.00 |
| Shank Height (Decimal Inch) | 0.9843 |
| Overall Length (mm) | 150.00 |
| Overall Length (Decimal Inch) | 5.9055 |
| Insert Compatibility | SN.. 43.. |
| Multi-Use Tool | No |
| Insert Holding Method | Lock Pin |
| Back of Bar to Cutting Edge (mm) | 22.00 |
| Back of Bar to Cutting Edge (Decimal Inch) | 0.8661 |
| Head Length (mm) | 24.00 |
| Head Length (Decimal Inch) | 0.9449 |
| Insert Inscribed Circle (Inch) | 1/2 |
| Insert Inscribed Circle (Decimal Inch) | 0.5000 |
| Insert Width (Inch) | 3/16 |
| Insert Width (Decimal Inch) | 0.1875 |
