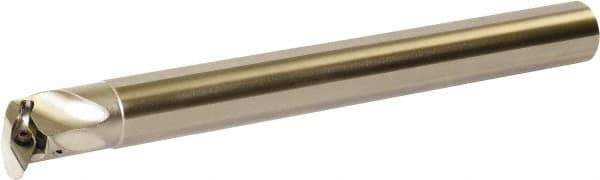

Kyocera - 1.24" Min Bore Diam, 12" OAL, 1" Shank Diam, A-SVPC(B)-AE Indexable Boring Bar - 2.008" Max Bore Depth, VBET 33.., VBGT 33.., VBGW 33.., VBMT 33.., VCGT 33.. Insert, Screw Holding Method
Item #: 50415009
Brand: Kyocera
Model #: 8826548
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Toolholder Style | A-SVPC(B)-AE |
| Series | Dynamic Bars |
| Minimum Bore Diameter (Decimal Inch) | 1.2400 |
| Hand of Holder | Right Hand |
| Maximum Bore Depth (Decimal Inch) | 2.0080 |
| Overall Length (Inch) | 12 |
| Overall Length (Decimal Inch) | 12.0000 |
| Shank Diameter (Decimal Inch) | 1.0000 |
| Insert Compatibility | VBET 33..; VBGT 33..; VBGW 33..; VBMT 33..; VCGT 33.. |
| Through Coolant | Yes |
| Multi-Use Tool | Yes |
| Multi-Use Application | Copying; Undercutting |
| Number of Inserts Used on Toolholder | 1 |
| Insert Holding Method | Screw |
| Rake | Negative |
| Lead Angle | 27.50 |
| Center to Cutting Edge (Decimal Inch) | 0.7090 |
| Insert Thickness (Inch) | 3/16 |
| Insert Thickness (Decimal Inch) | 0.1875 |
| Insert Inscribed Circle (Inch) | 3/8 |
| Insert Inscribed Circle (Decimal Inch) | 0.3750 |
| Rake Angle | -13 |
| Coolant Hole Diameter (mm) | 5.00 |
| Coolant Hole Diameter (Decimal Inch) | 0.1969 |
| Complete Insert Compatibility | VBET 33..; VBGT 3305MR/L-Y; VBGT 3305R/L-Y; VBGT 331MR/L-Y; VBGT 331R/L-Y; VBGT 332MR/L-Y; VBGT 332R/L-Y; VBGW 3305S00435MET; VBGW 3305T00315ME; VBGW 3305T00315SE; VBGW 331S00435MET; VBGW 331S00435SET; VBGW 331S00525MES; VBGW 331T00315ME; VBGW 331T00315SE |
| Toolholder Material | Steel |
