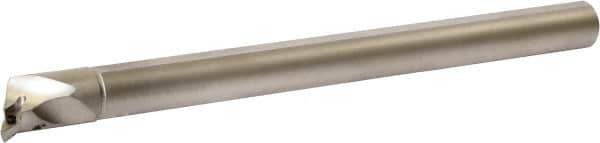

Kyocera - 14mm Min Bore Diam, 140mm OAL, 10mm Shank Diam, A-SVPC(B)-AE Indexable Boring Bar - 24mm Max Bore Depth, VCGW 1515.., VCMT 1515.. Insert, Screw Holding Method
Item #: 50414630
Brand: Kyocera
Model #: 8827403
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Toolholder Style | A-SVPC(B)-AE |
| Series | Dynamic Bars |
| Minimum Bore Diameter (mm) | 14.00 |
| Minimum Bore Diameter (Decimal Inch) | 0.5512 |
| Hand of Holder | Left Hand |
| Maximum Bore Depth (mm) | 24.00 |
| Maximum Bore Depth (Decimal Inch) | 0.9449 |
| Overall Length (mm) | 140.00 |
| Overall Length (Decimal Inch) | 5.5118 |
| Shank Diameter (mm) | 10.00 |
| Shank Diameter (Decimal Inch) | 0.3937 |
| Insert Compatibility | VCGW 1515..; VCMT 1515.. |
| Through Coolant | Yes |
| Multi-Use Tool | Yes |
| Multi-Use Application | Copying; Undercutting |
| Number of Inserts Used on Toolholder | 1 |
| Insert Holding Method | Screw |
| Rake | Negative |
| Lead Angle | 27.50 |
| Center to Cutting Edge (mm) | 8.50 |
| Center to Cutting Edge (Decimal Inch) | 0.3346 |
| Insert Thickness (Inch) | 3/32 |
| Insert Thickness (Decimal Inch) | 0.0938 |
| Insert Inscribed Circle (Inch) | 3/16 |
| Insert Inscribed Circle (Decimal Inch) | 0.1875 |
| Rake Angle | -8 |
| Coolant Hole Diameter (mm) | 3.00 |
| Coolant Hole Diameter (Decimal Inch) | 0.1181 |
| Complete Insert Compatibility | VCGW 151505S00435MET; VCGW 151505T00315ME; VCGW 151505T00315SE; VCGW 15151S00435MET; VCGW 15151S00435SET; VCGW 15151T00315ME; VCGW 15151T00315SE; VCGW 15152S00435MET; VCGW 15152S00435SET; VCGW 15152T00315ME; VCMT 151502; VCMT 151502NE; VCMT 151505; VCMT 1 |
| Toolholder Material | Steel |
