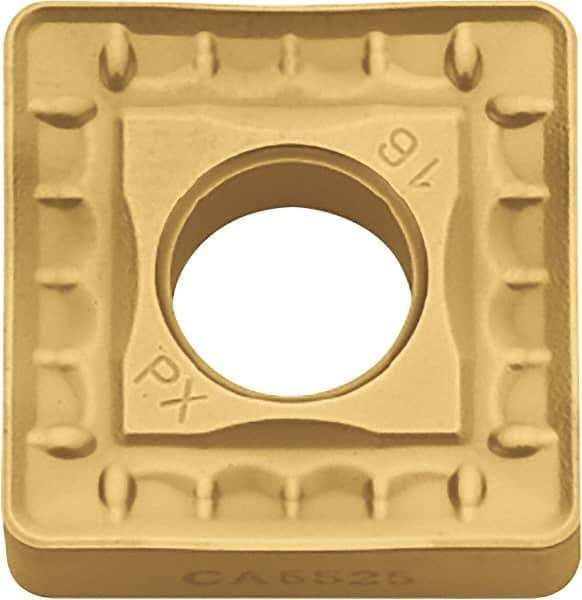

Kyocera - SNMM643 PX Grade CA530 Carbide Turning Insert - TiCN/Al2O3/TiN Finish, 90° Square, 3/4" Inscr Circle, 1/4" Thick, 3/64" Corner Radius
Item #: 50414317
Brand: Kyocera
Model #: 8839529
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat-resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | SNMM |
| Insert Size | 643 |
| Material | Carbide |
| Inscribed Circle (mm) | 19.05 |
| Inscribed Circle (Decimal Inch) | 0.7500 |
| Inscribed Circle (Inch) | 3/4 |
| Thickness (Inch) | 1/4 |
| Thickness (Decimal Inch) | 0.2500 |
| Thickness (mm) | 6.35 |
| Corner Radius (Inch) | 3/64 |
| Corner Radius (mm) | 1.1906 |
| Corner Radius (Decimal Inch) | 0.0469 |
| Manufacturer's Grade | CA530 |
| Coating | TiCN/Al2O3/TiN |
| Chip Breaker | PX |
| Hole Diameter (mm) | 7.92 |
| Hole Diameter (Decimal Inch) | 0.3120 |
| ISO Number | SNMM190612PX |
| Rake | Negative |
| Rake Angle | 22 |
| Relief Angle | 0 |
| Coating Process | CVD |
| Manufacturers Catalog Number | SNMM643PX CA530 |
| Primary Workpiece Material | P |
| Included Angle | 90 |
| Cutting Direction | Neutral |
| Insert Hand | Neutral |
| Insert Holding Method | Pin & Clamp |
| Multi Use Application | Turning |
| MultiUseTool | No |
| Shape | Square |
