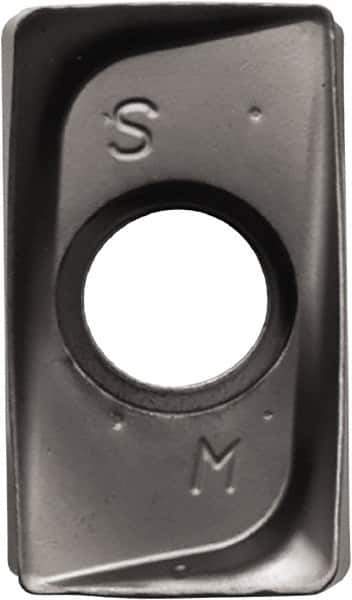

Kyocera - LOMU100408 SM Grade CA6535 Carbide Milling Insert - TiCN/Al2O3/TiN Finish, 4mm Thick, 0.8mm Corner Radius
Item #: 50381292
Brand: Kyocera
Model #: 8838232
Exact Tooling IR#: 04
Features and Benefits
Solid carbide provides better rigidity than high speed steel. It is extremely heat resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | LOMU |
| Insert Size | 100408 |
| Material | Carbide |
| Manufacturer's Grade | CA6535 |
| Coating | TiCN/Al2O3/TiN |
| Width (mm) | 6.60 |
| Width (Decimal Inch) | 0.2598 |
| Length (mm) | 10.90 |
| Length (Decimal Inch) | 0.4291 |
| Thickness (mm) | 4.00 |
| Thickness (Decimal Inch) | 0.1575 |
| Corner Radius (Decimal Inch) | 0.0315 |
| Corner Radius (mm) | 0.80 |
| Hole Diameter (mm) | 3.40 |
| Hole Diameter (Decimal Inch) | 0.1339 |
| Coating Process | CVD |
| Shape | Rectangle |
| Insert Hand | Right Hand |
| Chipbreaker | SM |
| Cutting Edge Style | Honed |
| Manufacturers Catalog Number | LOMU100408ERSM |
