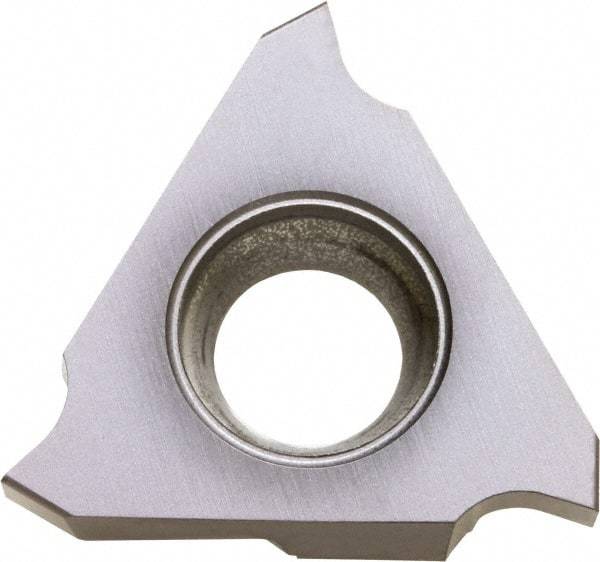

Kyocera - 43GBA Grade TN90, 4.5mm Cutting Width Cermet Grooving Insert - 5mm Max Depth of Cut, Right Hand, 0.4mm Corner Radius, TiCN/NbC Finish
Item #: 50377522
Brand: Kyocera
Model #: 8810876
Exact Tooling IR#: 04
Features and Benefits
Cermet is comprised of ceramic and metal and can be used at higher speeds than coated carbides. It is commonly used on cast iron, steel, stainless steel and nonferrous materials.
| Product Specifications | |
|---|---|
| Insert Style | GBA |
| Insert Size | 43 |
| Material | Cermet |
| Cutting Width (mm) | 4.50 |
| Cutting Width (Decimal Inch) | 0.1772 |
| Maximum Depth of Cut (mm) | 5.00 |
| Maximum Depth of Cut (Decimal Inch) | 0.1969 |
| Manufacturer's Grade | TN90 |
| Coating | TiCN/NbC |
| Cutting Direction | Right Hand |
| Insert Hand | Right Hand |
| Relief Angle | 2 |
| Multi-Use Tool | No |
| Corner Radius (mm) | 0.4000 |
| Corner Radius (Decimal Inch) | 0.015748 |
| Series | GBA |
| Manufacturers Catalog Number | GBA43R450-040 |
| Insert Thickness (Decimal Inch) | 0.1870 |
