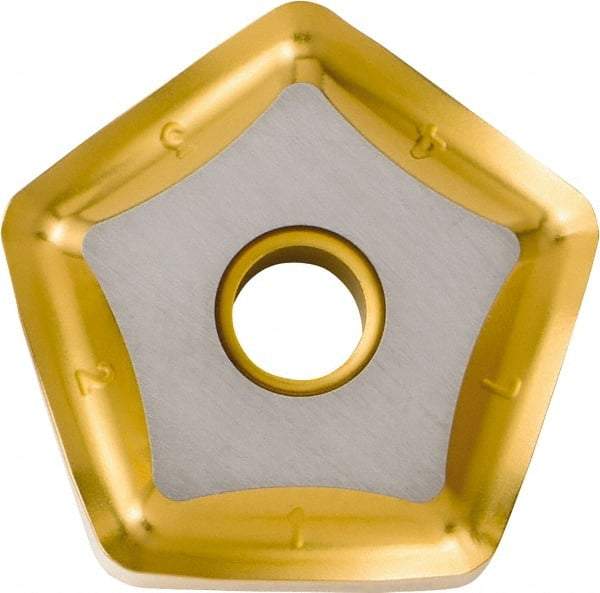

Kyocera - PNEG1106 GL Grade CA420M Carbide Milling Insert - TiCN/Al2O3/TiN Finish, 6.35mm Thick
Item #: 50370550
Brand: Kyocera
Model #: 8842541
Exact Tooling IR#: 04
Features and Benefits
Solid carbide provides better rigidity than high speed steel. It is extremely heat resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | PNEG |
| Insert Size | 1106 |
| Material | Carbide |
| Manufacturer's Grade | CA420M |
| Coating | TiCN/Al2O3/TiN |
| Width (mm) | 17.18 |
| Width (Decimal Inch) | 0.6764 |
| Thickness (mm) | 6.35 |
| Thickness (Decimal Inch) | 0.2500 |
| Relief Angle | 0.000 |
| Coating Process | CVD |
| Shape | Parallelogram |
| Insert Hand | Neutral |
| Chipbreaker | GL |
| Cutting Edge Style | Honed |
| Manufacturers Catalog Number | PNEG1106XNEN-GL |
