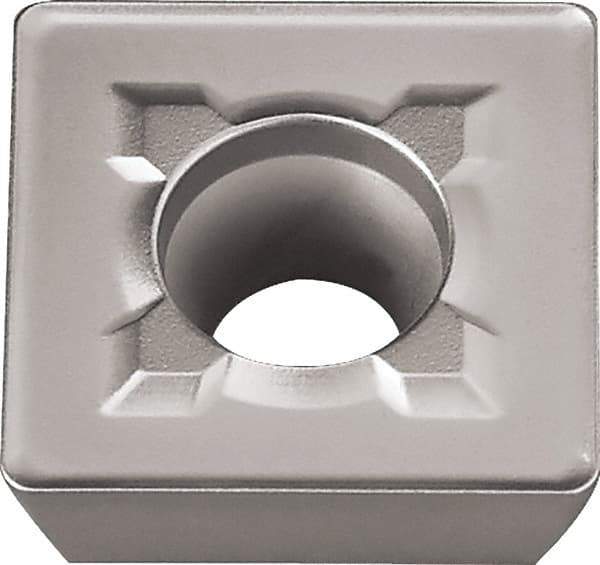

Kyocera - SDMT080308 K Grade KW10 Carbide Milling Insert - WC/Co Finish, 6.35mm Thick, 8.001mm Inscribed Circle, 0.8mm Corner Radius
Item #: 50364314
Brand: Kyocera
Model #: 8813443
Exact Tooling IR#: 04
Features and Benefits
Solid carbide provides better rigidity than high speed steel. It is extremely heat resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | SDMT |
| Insert Size | 080308 |
| Material | Carbide |
| Material Grade | K10 |
| Manufacturer's Grade | KW10 |
| Coating | WC/Co |
| Width (mm) | 8.00 |
| Width (Decimal Inch) | 0.3150 |
| Inscribed Circle (mm) | 8.00 |
| Inscribed Circle (Decimal Inch) | 0.3150 |
| Thickness (mm) | 6.35 |
| Thickness (Decimal Inch) | 0.2500 |
| Corner Radius (Decimal Inch) | 0.0315 |
| Corner Radius (mm) | 0.80 |
| Hole Diameter (mm) | 6.81 |
| Hole Diameter (Decimal Inch) | 0.2680 |
| Relief Angle | 15.000 |
| Shape | Square |
| Insert Hand | Right Hand |
| Chipbreaker | K |
| Cutting Edge Style | Honed |
| Manufacturers Catalog Number | SDMT080308E-K |
