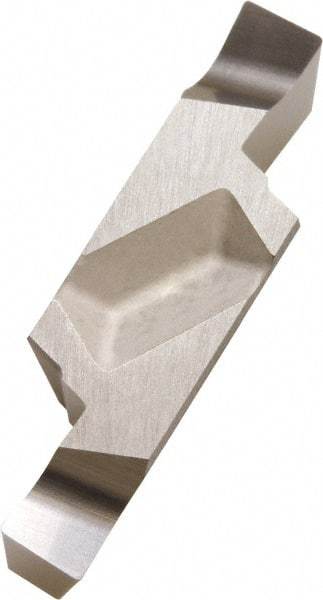

Kyocera - 200GVF A Grade KW10, 2mm Cutting Width Carbide Grooving Insert - 2.3mm Max Depth of Cut, Left Hand, 0.2mm Corner Radius, WC/Co Finish
Item #: 50364058
Brand: Kyocera
Model #: 8805608
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat resistant and used for high speed applications. It is commonly used on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | GVF |
| Insert Size | 200 |
| Material | Carbide |
| Cutting Width (mm) | 2.00 |
| Cutting Width (Decimal Inch) | 0.0787 |
| Maximum Depth of Cut (mm) | 2.30 |
| Maximum Depth of Cut (Decimal Inch) | 0.0906 |
| Manufacturer's Grade | KW10 |
| Coating | WC/Co |
| Cutting Direction | Left Hand |
| Insert Hand | Left Hand |
| Cutting Height (mm) | 4.50 |
| Cutting Height (Decimal Inch) | 0.1772 |
| Relief Angle | 2 |
| Chipbreaker | A |
| Multi-Use Tool | Yes |
| Multi-Use Application | Facing |
| Corner Radius (mm) | 0.20 |
| Corner Radius (Decimal Inch) | 0.007874 |
| Overall Length (mm) | 12.00 |
| Overall Length (Decimal Inch) | 0.4724 |
| Series | GVF |
| Rake Angle | 17 |
| Rake | Positive |
| Manufacturers Catalog Number | GVFL200A |
| Insert Thickness (Decimal Inch) | 0.1693 |
| Insert Thickness (mm) | 4.3000 |
