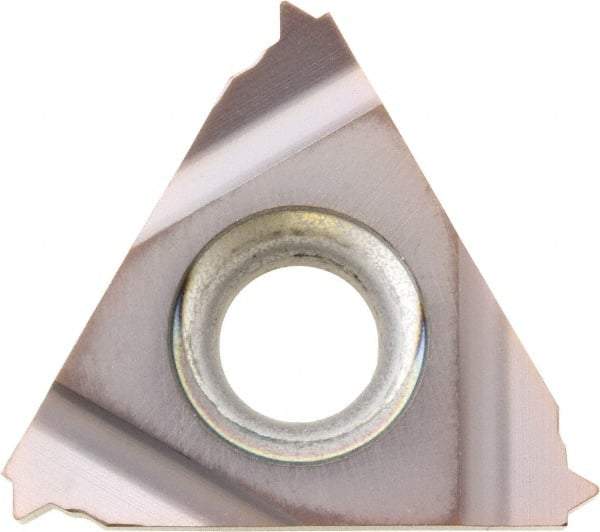

Kyocera - 16ER External Right Hand ISO Laydown Threading Insert - Grade GW15, Carbide, 9.53mm Inscribed Circle
Item #: 50363621
Brand: Kyocera
Model #: 8827897
Exact Tooling IR#: 04
Features and Benefits
Solid carbide provides better rigidity than high speed steel. It is extremely heat resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Material | Carbide |
| Insert Style | 16ER |
| Insert Hand | Right Hand |
| Thread Type | External |
| Thread Standard | ISO |
| Material Grade | Micrograin |
| Manufacturer's Grade | GW15 |
| External Pitch (mm) | 1 |
| Pitch (mm) | 1 |
| Inscribed Circle (mm) | 9.53 |
| Inscribed Circle (Decimal Inch) | 0.3752 |
| Thickness (Decimal Inch) | 0.1449 |
| Thickness (mm) | 3.68 |
| Included Angle of Threading Tip | 60 |
| Hole Diameter (mm) | 4.00 |
| Hole Diameter (Decimal Inch) | 0.1575 |
| Corner Radius (mm) | 0.12 |
| Corner Radius (Decimal Inch) | 0.0047 |
