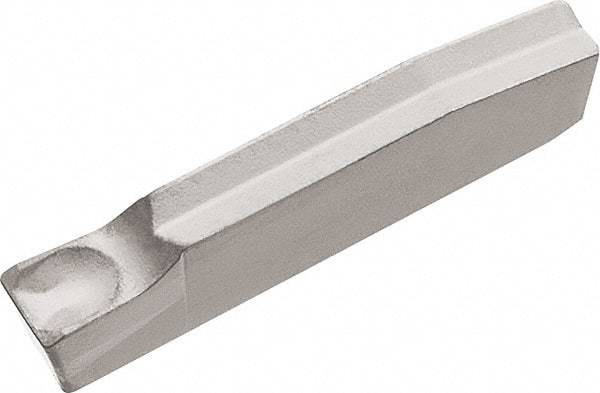

Kyocera - 2GMN TK Grade KW10, 2mm Cutting Width Carbide Grooving Insert - Neutral, 0.2mm Corner Radius, WC/Co Finish
Item #: 50358449
Brand: Kyocera
Model #: 8811304
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat resistant and used for high speed applications. It is commonly used on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | GMN |
| Insert Size | 2 |
| Material | Carbide |
| Cutting Width (mm) | 2.00 |
| Cutting Width (Decimal Inch) | 0.0787 |
| Manufacturer's Grade | KW10 |
| Coating | WC/Co |
| Cutting Direction | Neutral |
| Insert Hand | Neutral |
| Cutting Height (mm) | 4.30 |
| Cutting Height (Decimal Inch) | 0.1693 |
| Chipbreaker | TK |
| Multi-Use Tool | Yes |
| Multi-Use Application | Cut-Off |
| Corner Radius (mm) | 0.20 |
| Corner Radius (Decimal Inch) | 0.007874 |
| Overall Length (mm) | 20.00 |
| Overall Length (Decimal Inch) | 0.7874 |
| Series | GMN |
| Rake Angle | 9 |
| Rake | Negative |
| Manufacturers Catalog Number | GMN2-TK |
| Insert Thickness (Decimal Inch) | 0.0709 |
| Insert Thickness (mm) | 1.8000 |
