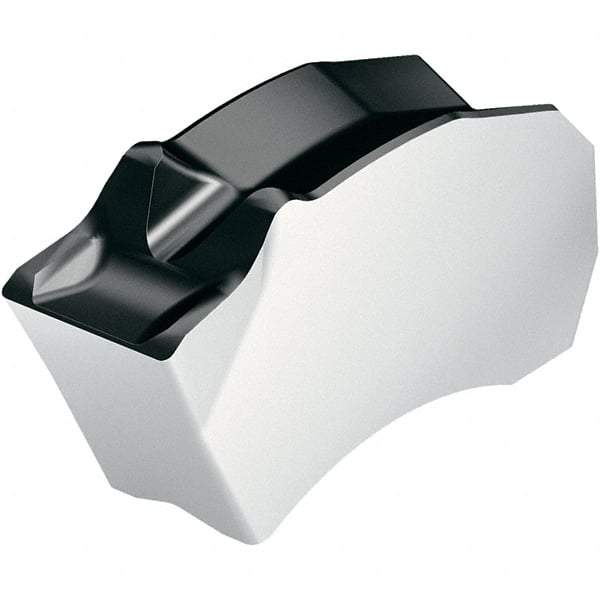

Walter - 260SX CE4 Grade WSM23S, 2.6mm Cutting Width Carbide Grooving Insert - 30mm Max Depth of Cut, Neutral, 0.3mm Corner Radius, Al2O3/TiAlN Finish
Item #: 50333590
Brand: Walter
Model #: 6913043
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat resistant and used for high speed applications. It is commonly used on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | SX |
| Insert Size | 260 |
| Material | Carbide |
| Cutting Width (mm) | 2.60 |
| Maximum Depth of Cut (mm) | 30.00 |
| Manufacturer's Grade | WSM23S |
| Coating | Al2O3/TiAlN |
| Cutting Direction | Neutral |
| Insert Hand | Neutral |
| Cutting Height (mm) | 0.00 |
| Lead Angle | 0 |
| Relief Angle | 6 |
| Chipbreaker | CE4 |
| Corner Radius (mm) | 0.3 |
| Coating Process | PVD |
| Series | SX |
| Rake Angle | 20 |
| Rake | Positive |
