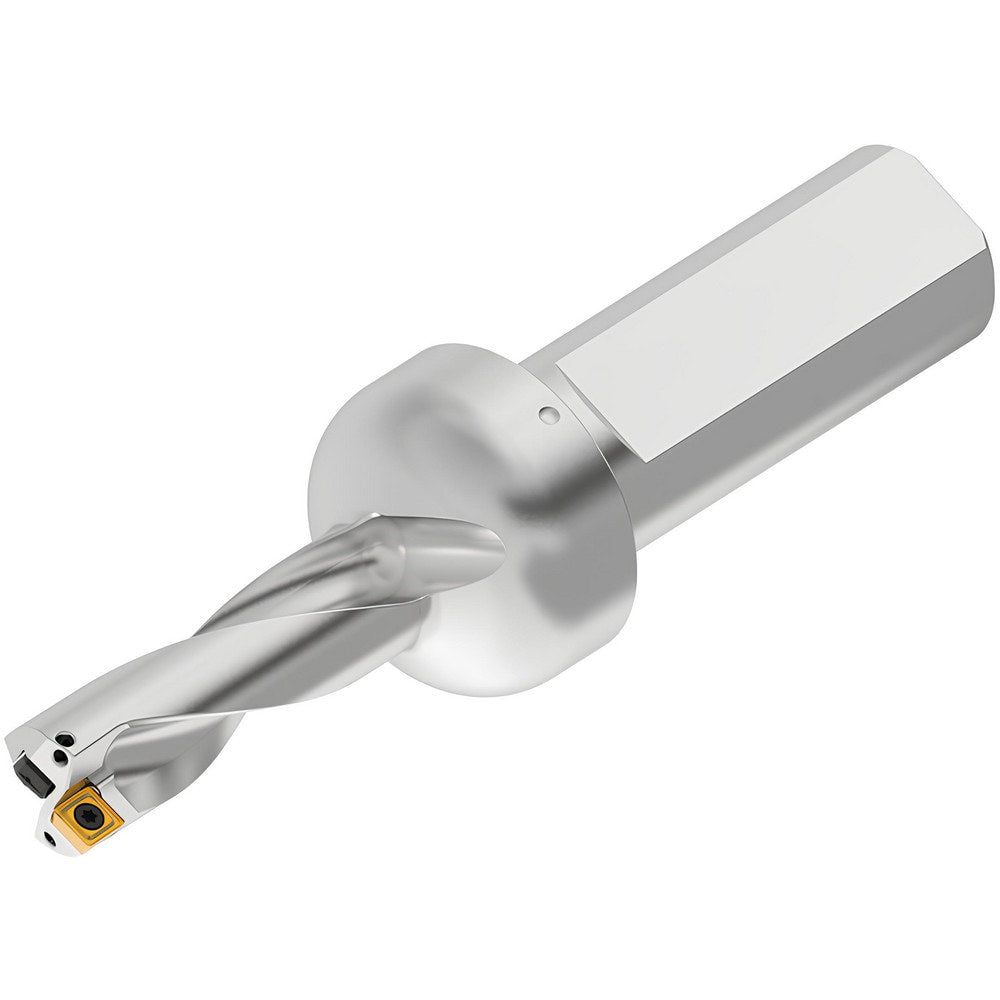

Indexable Insert Drill: DFPR160R3WB20M, 16.50 mm Max Dia, 48.00 mm Max Depth, 3xD, 20.00 mm Shank Dia
Item #: 02198117
Brand: Kennametal
Model #: 7034812
Product Specifications
| Compatible Drill Style | DFPR |
| Maximum Drill Diameter (mm) | 16.50 |
| Maximum Drill Depth (mm) | 48.00 |
| Shank Type | Flange; Weldon Flat |
| Shank Diameter (mm) | 20.00 |
| Number of Drill Inserts | 2 |
| Cutting Direction | Right Hand |
| Maximum Drill Depth Range (mm) | 0.00 to 50.00 |
| Tool Material | Steel |
| Compatible Insert Style | DFPR |
| Compatible Insert Size Code | 050203; 050204 |
| Drill Depth by Diameter Ratio | 3xD |
| Coolant Entry Style Code | 1-Axial Concentric Entry |
| Series | DFPR |
| Flute Length (mm) | 48.00 |
| Body Length | 67.00 |
| Shank Length (mm) | 50.00 |
| Coolant Hole Thread Size | "1/8-27 NPT" |
| Tool Application | Drilling |
| Tool Performance | General Purpose |
| Insert Size (mm) | 5.3x2.4; 5.25x2.4 |
| UNSPSC Code | 23291503 |
| Insert Compatibility | DFPR050203__I; DFPR050204__O |
| Shank End Coolant Hole Thread Size (Inch) | 1/8-27 |
| Insert Lock Screw | M2-0.4x4.5T6 |
| Coolant Through | Yes |
