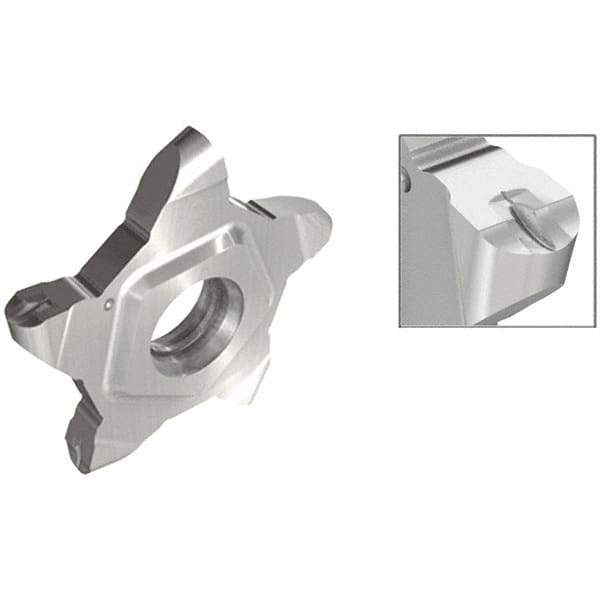

Iscar - PENTA24N318 J IC908 Grade, 0.1252" Cutting Width, Carbide Cutoff Insert - Neutral Lead Angle, 0.0626" Cnr Rad, TiN/TiAlN Coated
Item #: 50094606
Brand: Iscar
Model #: 6004813
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat resistant and used for high speed applications. It is commonly used on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Material | Carbide |
| Insert Style | PENTA |
| Insert Size | 24N318 |
| Lead Angle Direction | Neutral |
| Cutting Width (mm) | 3.18 |
| Cutting Width (Decimal Inch) | 0.1252 |
| Material Grade | Submicron |
| Manufacturer's Grade | IC908 |
| Coating | TiN/TiAlN |
| Series | PentaCut |
| Chipbreaker | J |
| Maximum Depth of Cut (mm) | 6.50 |
| Maximum Depth of Cut (Decimal Inch) | 0.2559 |
| Full Radius | Yes |
| Multi-Use Application | Grooving |
| Coating Process | PVD |
| Corner Radius (Decimal Inch) | 0.0626 |
| Corner Radius (mm) | 1.59 |
| Insert Holding Method | Screw |
| Overall Width (mm) | 4.00 |
| Overall Width (Decimal Inch) | 0.1575 |
| Manufacturers Catalog Number | PENTA 24N318J159 |
