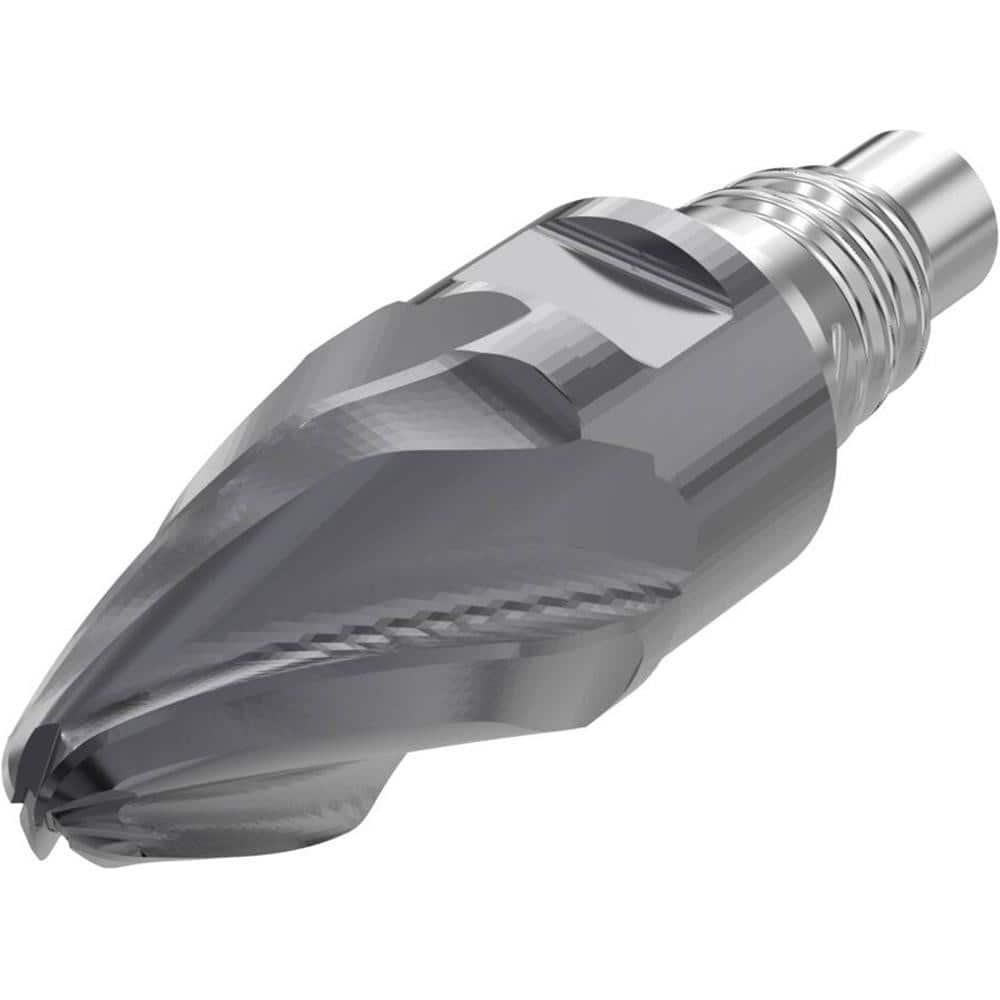

Milling Tip Inserts; Milling Tip Type: Profile Mill; Milling Tip Style: XHT; Maximum Depth of Cut (mm): 21.02; Cutting Diameter (mm): 16.00; Tool Material: Carbide; Depth of Cut (mm): 21.02; Manufacturer Grade: SIRA; Chipbreaker: None; Series: XHT740; Coa
Item #: 50003474
Brand: Seco
Model #: 10138394
Product Specifications
| Milling Tip Type | Profile Mill |
| Milling Tip Style | XHT |
| Maximum Depth of Cut (mm) | 21.02 |
| Cutting Diameter (mm) | 16.00 |
| Tool Material | Carbide |
| Depth of Cut (mm) | 21.02 |
| Manufacturer Grade | SIRA |
| Chipbreaker | None |
| Series | XHT740 |
| Coating Process | PVD |
| Corner Radius (mm) | 4.00 |
| Cutting Width (mm) | 0.000 |
| Primary Workpiece Material | Hard Material; Stainless Steel; Super-alloys & Titanium; Steel |
| Primary Workpiece Material Code | P; S; H; M |
| Lead Angle | 90 |
| Manufacturers Catalog Number | XHT740E16160T3R4R1000Z4 |
| Insert Size | E10 |
| Length of Cut (mm) | 21.0200 |
| Helix Angle | 20 |
| Coolant Through | No |
| Mill Diameter (mm) | 16.00 |
| Overall Length (mm) | 51.1000 |
| Projection Length (Decimal Inch) | 1.3425 |
| Included Angle Degree | 90 |
| Coating/Finish | SIRA |
| Number Of Flutes | 4 |
| Length | 34.10 |
