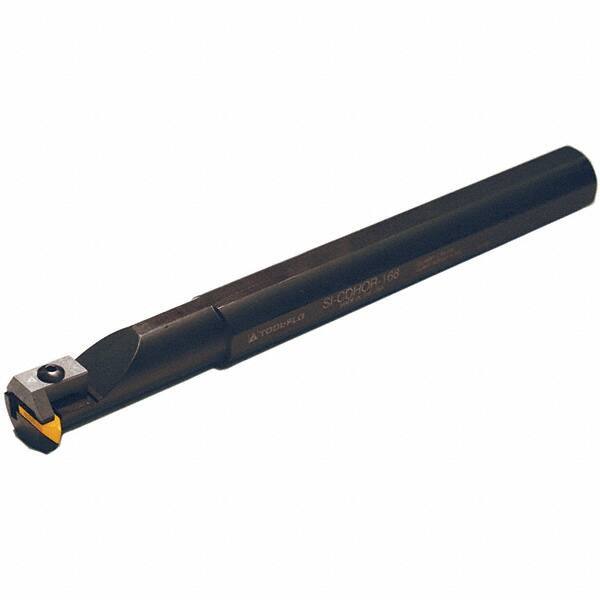

Tool-Flo - SI-CDHOR, Internal, Right Hand, 0.57" Max Depth of Cut, Indexable Grooving Tool Holder - V120 Insert Compatibility, 2-1/2" Shank Width, 16" OAL
Item #: 49722929
Brand: Tool-Flo
Model #: 96804092
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Internal or External | Internal |
| Toolholder Type | NonFace Grooving |
| Hand of Holder | Right Hand |
| Maximum Depth of Cut (Decimal Inch) | 0.5700 |
| Overall Length (Inch) | 16 |
| Overall Length (Decimal Inch) | 16.0000 |
| Toolholder Style | SI-CDHOR |
| Insert Compatibility | V120 |
| Shank Width/Diameter (Inch) | 2-1/2 |
| Shank Width/Diameter (Decimal Inch) | 2.5000 |
| Series | Vee Bottom |
| Through Coolant | Non Coolant Through |
| Multi-Use Tool | Yes |
| Multi-Use Application | Grooving; Threading |
| Insert Holding Method | Clamp |
| Maximum Bore Depth (Decimal Inch) | 0.5000 |
| Center to Cutting Edge (Decimal Inch) | 1.5750 |
| Manufacturers Catalog Number | SI-CDHOR-4012 |
| Complete Insert Compatibility | V120 NGC W.625; V120 NGC W.750; V120 NT 1.5P; V120 NT 1P; V120 NT 1P STUB |
| Minimum Bore Diameter (Decimal Inch) | 4.0000 |
| Shank Diameter (Decimal Inch) | 2.5000 |
